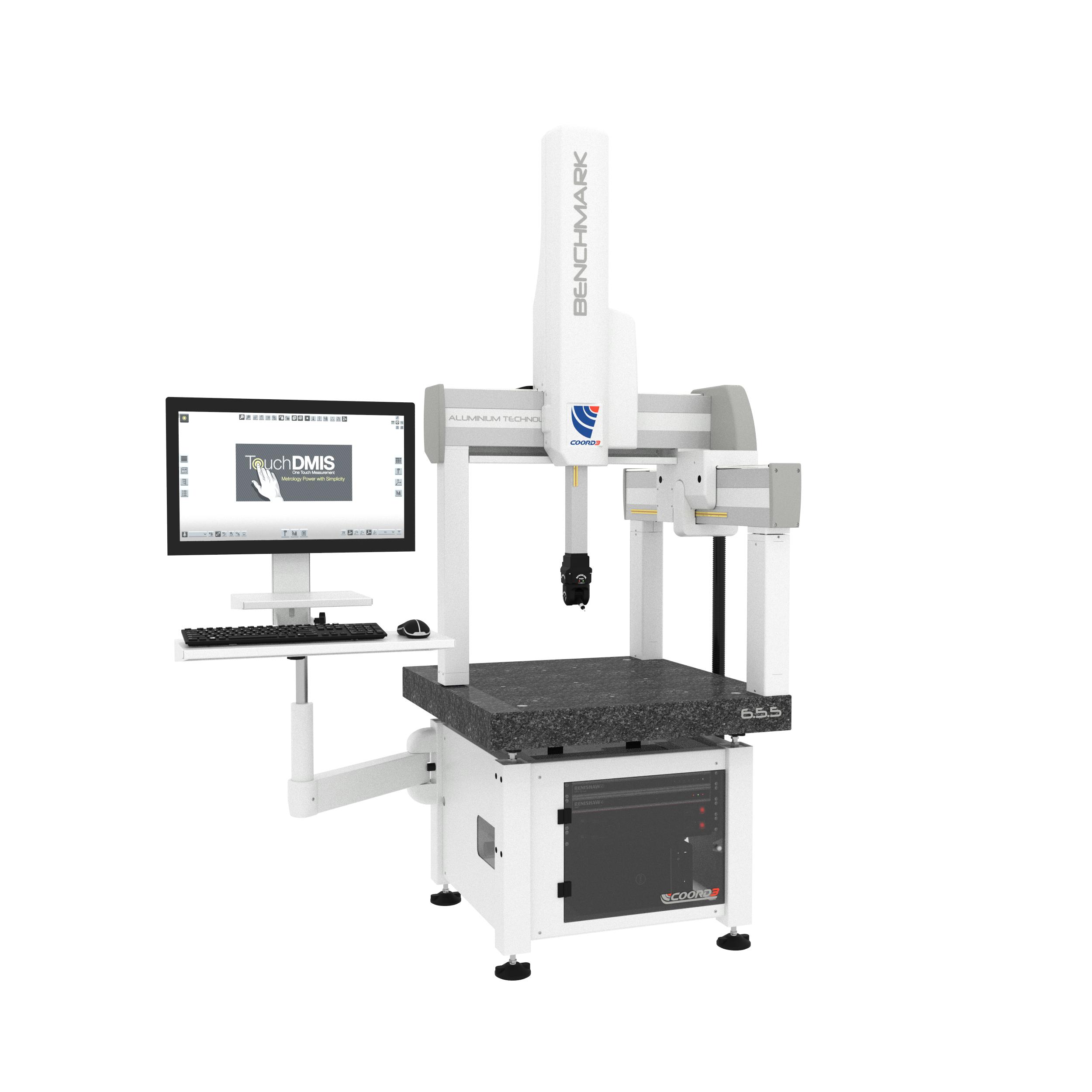

Coord Bridge CMM – Benchmark
The BENCHMARK CMM is a compact, highly accurate measuring solution designed for small workshops and quality control environments. Featuring precision air bearings, a Renishaw touch probe, and optional automated inspection capabilities, it delivers reliable measurement performance in a space-saving design.
Description
The BENCHMARK Coordinate Measuring Machine (CMM) is a compact and versatile inspection solution designed for small workshops, quality control rooms, and production environments. Its open design provides excellent operator accessibility and ergonomics, making measurement tasks simple and efficient.
Despite its compact footprint, the BENCHMARK delivers impressive accuracy, achieving measurement precision of up to 2.5 microns through its precision air-bearing system. The machine is supplied as standard with a Renishaw touch probe, ensuring reliable and accurate inspection across a wide range of applications.
For increased automation and productivity, the BENCHMARK can also be equipped with a motorized probe head, enabling fully automated inspection routines. Combining accuracy, ease of use, and affordability, the BENCHMARK is an ideal entry-level CMM for manufacturers seeking dependable dimensional measurement capabilities.
Features
- Advanced ultra-rigid alloy platform for exceptional stability and accuracy
- Rapid thermal diffusion design minimises the effects of temperature fluctuations
- FEA-optimised structure ensures maximum stiffness and dynamic performance
- Single-piece granite base with M8 threaded inserts in a checkerboard configuration
- Precision rigid air bearings for smooth, reliable movement
- Pneumatic counterbalanced Z-axis for improved machine performance
- High-resolution measuring scales with 0.1 micron resolution and dynamic signal processing
- Fully digital motion control with probe path fusion technology
- Near-zero hysteresis friction reduction system on all axes
- Passive vibration damping system isolates the machine from external disturbances
- Open design provides unrestricted access to the measuring area
- Maximum positioning speed of 500 mm/sec
- Maximum acceleration of 1500 mm/sec²
