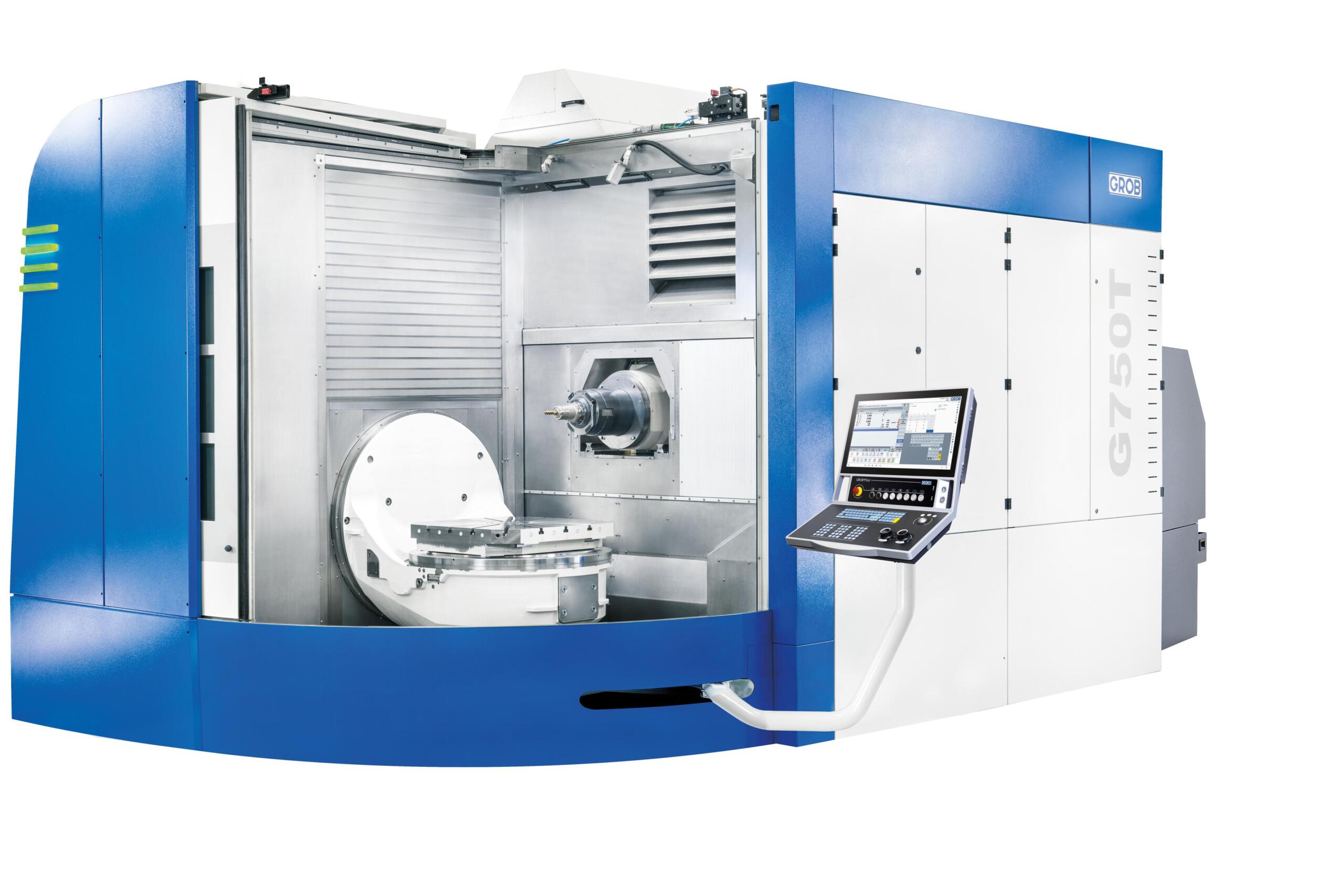

GROB G750T
The GROB G750T is a large-format 5-axis mill-turn machining centre that combines high-performance milling and turning in a single setup. Designed for the precise machining of large, complex components, it delivers exceptional stability, flexibility and productivity across a wide range of manufacturing applications.
Description
GROB G750T is a universal machining centre built around GROB universal machining centre platform with horizontal spindle concept, swivelling rotary table and 5-axis or mill-turn capability depending on model. It is intended for complex multi-sided machining, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
- Simultaneous 5-axis milling and turning in one machine
- Complete machining in a single setup for reduced cycle times
- Horizontal spindle design for optimal chip evacuation
- High machine rigidity for exceptional accuracy and surface quality
- Large swivel range with 230° A'-axis and 360° B'-axis movement
- Capable of 5-sided machining and 5-axis simultaneous interpolation
- Integrated GROB TRAORI turning technology
- Tunnel concept enables machining of large components with long tools
- Optimised accessibility for setup, tooling and maintenance
- Compact machine footprint with a spacious work area
- Designed for automation and flexible manufacturing systems
- High productivity and availability for demanding production environments
- Ideal for aerospace, energy, automotive and precision engineering applications
- Supported by GROB's global service and support network
SPECIFICATIONS
| Specification | Value |
|---|---|
| Number of Axes | 5-axis |
| Spindle Orientation | Horizontal, Universal |
| Applications | Aerospace / Aeronautics |
| Control System | CNC |
| Maximum Turning Speed | 500 rpm |
| X-Axis Travel | 1,000 mm |
| Y-Axis Travel | 1,100 mm |
| Z-Axis Travel | 1,175 mm |
