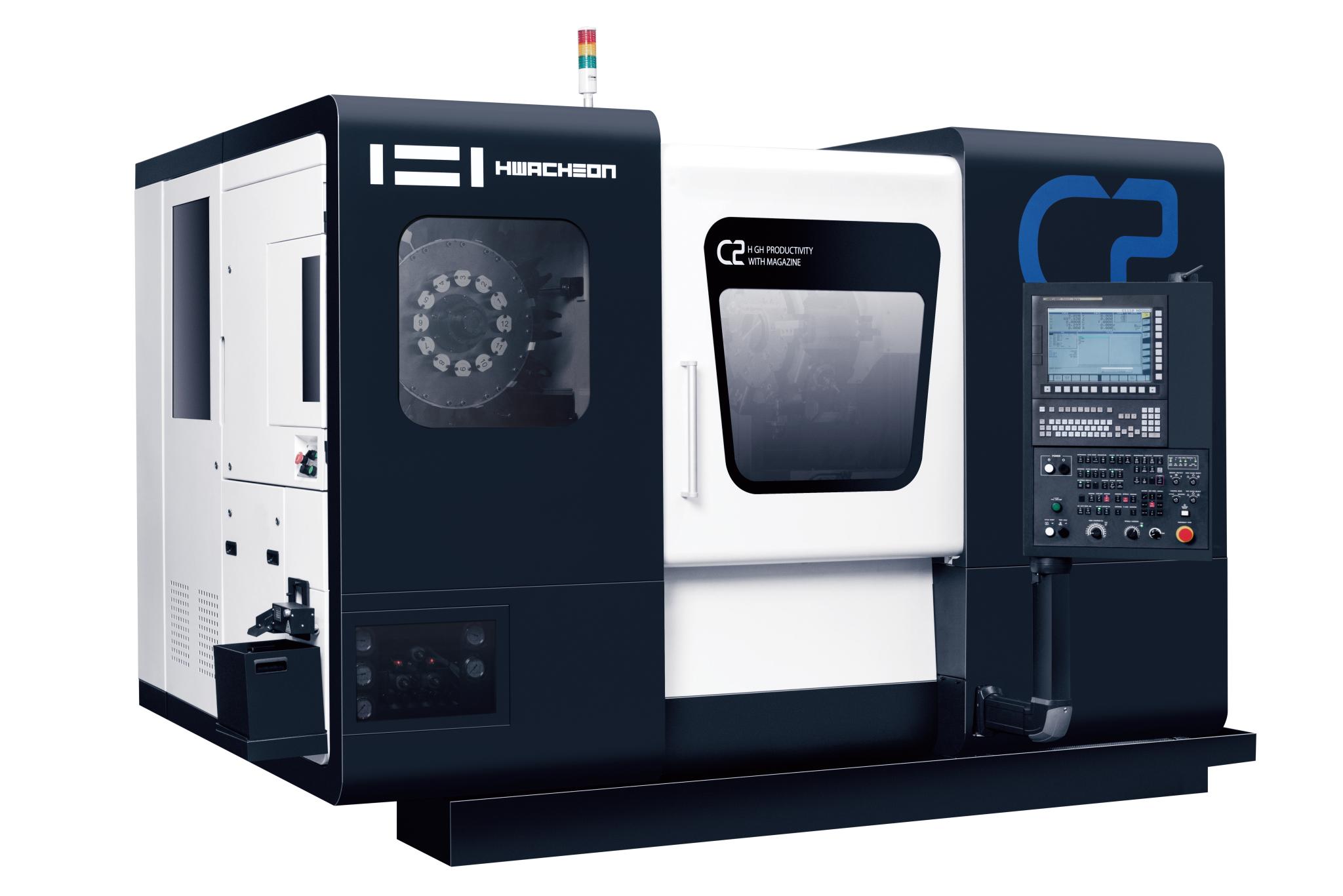

Hwacheon C2
Hwacheon C2 features Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software, designed for accurate and reliable production turning.
Description
Hwacheon C2 is a turning centre built around Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software. It is intended for automotive, hydraulic and general engineering work, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
Key Features
- 8" or 10" chuck size with a maximum turning diameter of 630 mm
- Maximum turning length of 557 mm
- Y-axis and C-axis functionality for complex multi-axis machining
- Capable of off-centre drilling, milling and 3D contour machining
- 18-station turret with automatic tool changing (ATC)
- Reduced setup times and increased machining flexibility
- Powerful spindle motor delivering up to 20 hp
- Suitable for both heavy roughing and precision finishing operations
- Heavy-duty cast iron machine base for maximum rigidity and stability
- Machine weight of approximately 10,800 kg for vibration-free machining performance
SPECIFICATIONS
| Item | C2 | ||
|---|---|---|---|
| C2 YMC | C2 YSMC | ||
| Capacity | |||
| Swing over bed | mm | Ø730 | Ø730 |
| Max Cutting Diameter (If parts catcher is applied) | mm | Ø630 (Ø450) | Ø630 (Ø450) |
| Max Cutting Length | mm | 557 | 557 (Sub:569) |
| Chuck Size (Main) | inch | 8 (Opt : 10) | 8 (Opt : 10) |
| Chuck Size (Sub) | inch | - | 6 |
| Spindle | |||
| Type of Spindle Nose | ASA | A2-6 | A2-6 |
| Max Spindle Speed | rpm | 5,000 | 5,000 |
| Through Spindle Hole Diameter | mm | Ø76 | Ø76 |
| Max Bar Size | mm | Ø65 | Ø65 |
| Min. Index Angle | deg | 0.0001 | 0.0001 |
| Spindle Motor | kW | 15 / 11 | 15 / 11 |
| Sub-Spindle (Opt) | |||
| Type of Spindle Nose | ASA | - | A2-5 |
| Max Sub-Spindle Speed | rpm | - | 6,000 |
| Through Spindle Hole Dia | mm | - | Ø38 |
| Max Bar Size | mm | - | Ø29 |
| Spindle Motor | kW | - | 7.5 / 5.5 |
