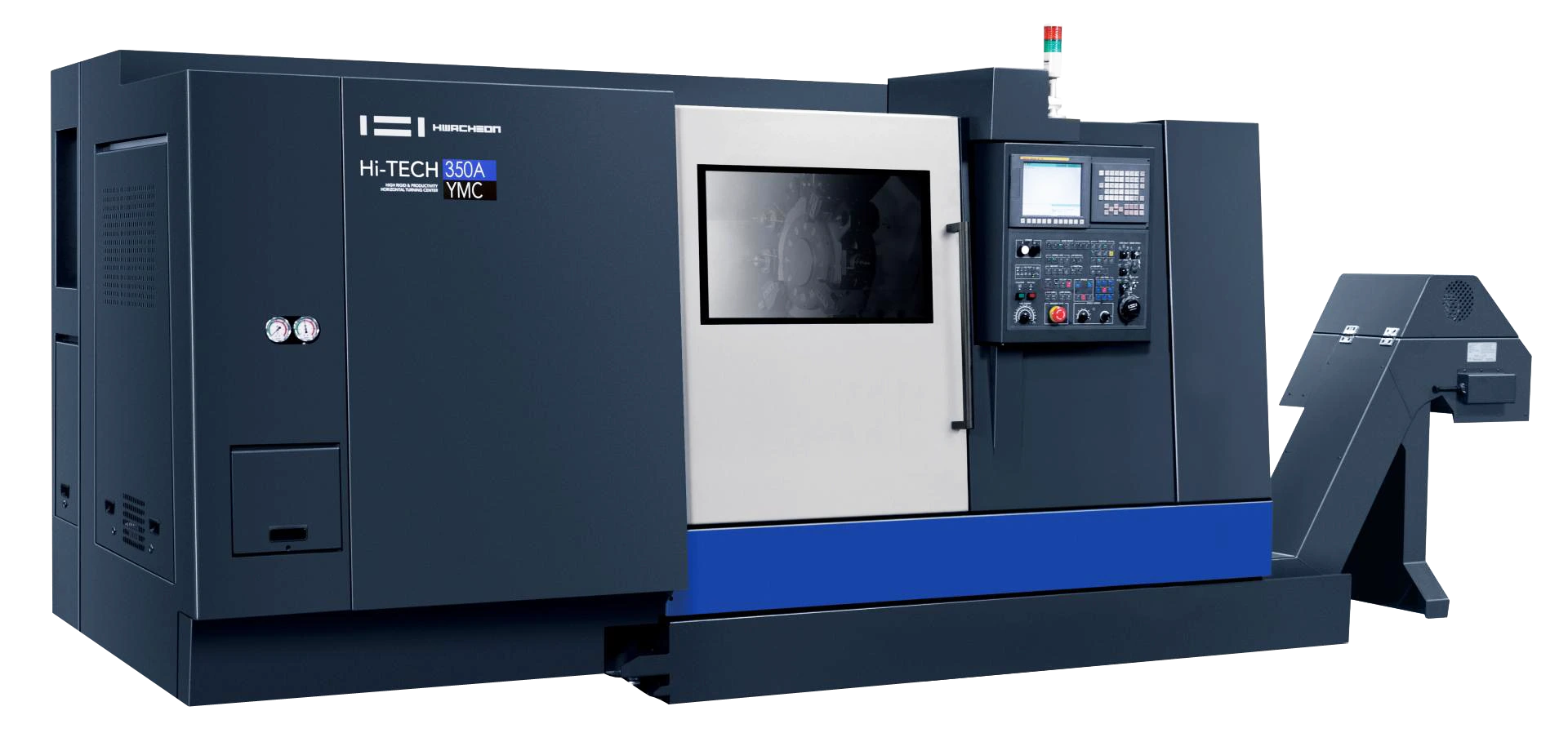

Hwacheon HiTech 350 SYMC
Hwacheon HiTech 350 SYMC features Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software, designed for accurate and reliable production turning.
Description
Hwacheon HiTech 350 SYMC is a turning centre built around Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software. It is intended for automotive, hydraulic and general engineering work, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
Key Features
- Available with 8" or 10" chuck configurations
- Maximum turning diameter of Ø420 mm
- Maximum turning length from 673 mm up to 1,273 mm
- Powerful spindle motor delivering up to 22 kW (30 HP)
- Maximum spindle speeds of up to 5,000 rpm
- Integrated sub-spindle for complete front and back machining
- Sub-spindle speed of up to 4,000 rpm
- Y-axis travel of ±60 mm (120 mm total stroke)
- 12-station turret with BMT65 or VDI40 tooling options
- Supports complex milling, drilling and turning operations
- High rigidity construction for precision machining
- Suitable for automated and high-volume production environments
- Machine weight of approximately 8,700 kg for excellent stability
- Designed for high productivity, accuracy and process reliability
SPECIFICATIONS
- High performance spindle: 5000 rpm (18.5/15 kW)
- High precision and rigidity, monolithic machine bed slanted at 45°
- Turret indexing time (1 Pos): 0.25 s.
- Rapid traverse speed (X/Z): 20/24 m/min.
- Optional sub spindle and driven tools.
