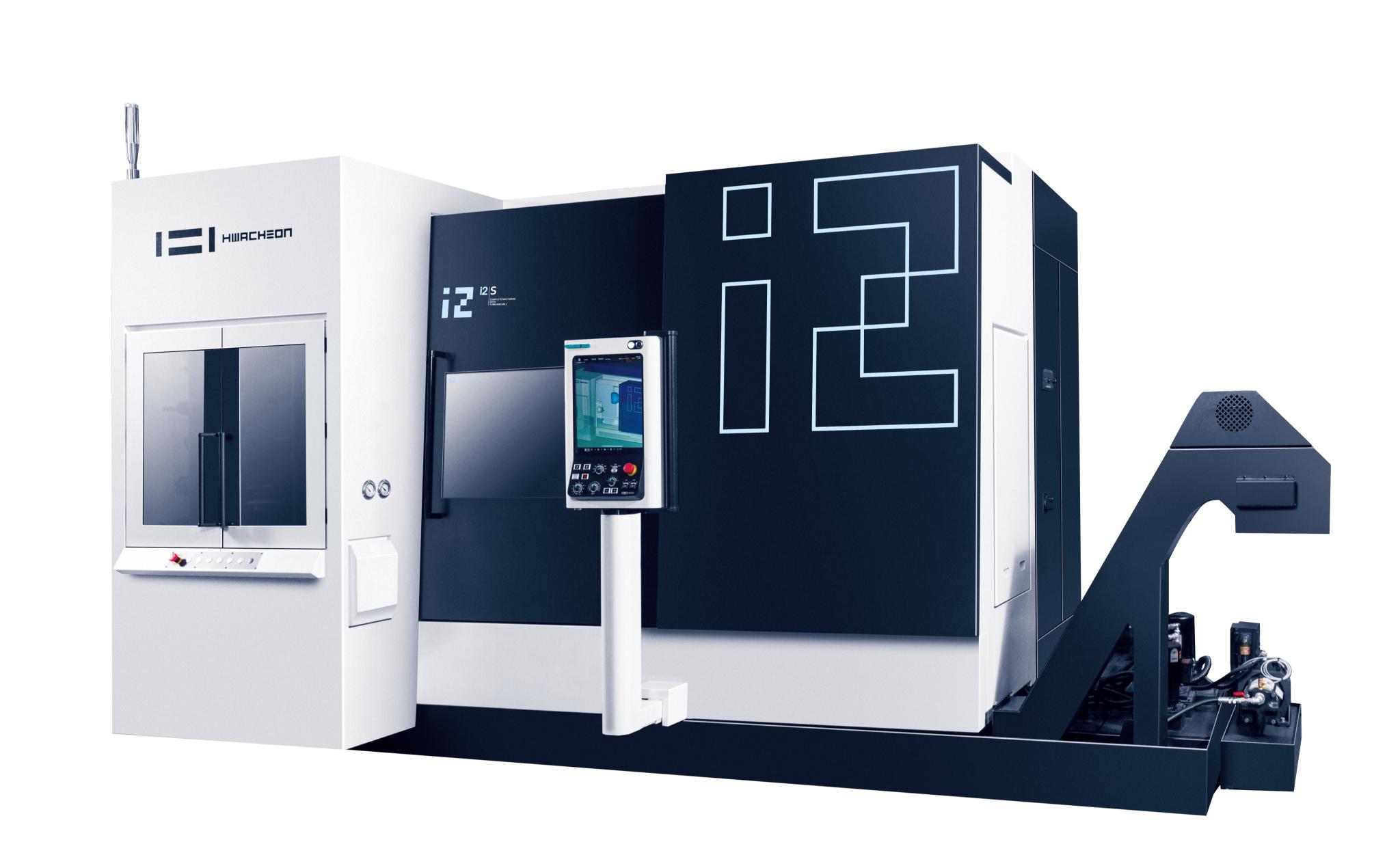

Hwacheon i2
Hwacheon i2 features Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software, designed for accurate and reliable production turning.
Description
Hwacheon i2 is a turning centre built around Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software. It is intended for automotive, hydraulic and general engineering work, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
Key Features
- Twin identical main and sub-spindles with 8" chucks
- Full machining capability on both spindles without compromising performance
- Flexible B-axis milling spindle with full interpolation
- Hirth coupling system for maximum rigidity during heavy cutting
- Supports drilling, milling and simultaneous 5-axis machining
- Automatic tool changer with capacity for 40 to 80 tools
- Reduced setup times and increased machining flexibility
- Hwacheon Harmony-Control with intuitive Windows-based interface
- User-friendly operation with touchscreen-style functionality
- Automation-ready for unmanned and lights-out production
- Easily integrates with robots, bar feeders and gantry loaders
- Ideal for complex multi-tasking and complete part machining
- High productivity through reduced handling and setup requirements
- Designed for precision, flexibility and continuous production environments
SPECIFICATIONS
| Specification | Value |
|---|---|
| Swing Over Bed | Ø600 mm |
| Maximum Cutting Diameter | Ø600 mm |
| Maximum Cutting Length | 1,100 mm |
| Chuck Size (Spindle 1 & 2) | 8" + 8" |
| Maximum Spindle Speed (Spindle 1 & 2) | 5,000 rpm |
| Through Spindle Hole Diameter | Ø76 mm |
| Spindle Motor Power | 22 / 15 kW |
| Maximum Milling Spindle Speed | 12,000 rpm (Optional 20,000 rpm) |
| Rapid Traverse Rates (X / Y / Z / A / B) | 48 / 48 / 36 / 30 / 40 m/min |
| Maximum Stroke (X / Y / Z / A / B) | 630 / ±150 / 1,160 / 1,120 / ±120° |
| Turret Tool Stations | 12 (Optional) |
| ATC Tool Capacity | 40 Tools (Optional 80) |
| NC Controller | Harmony Control |
