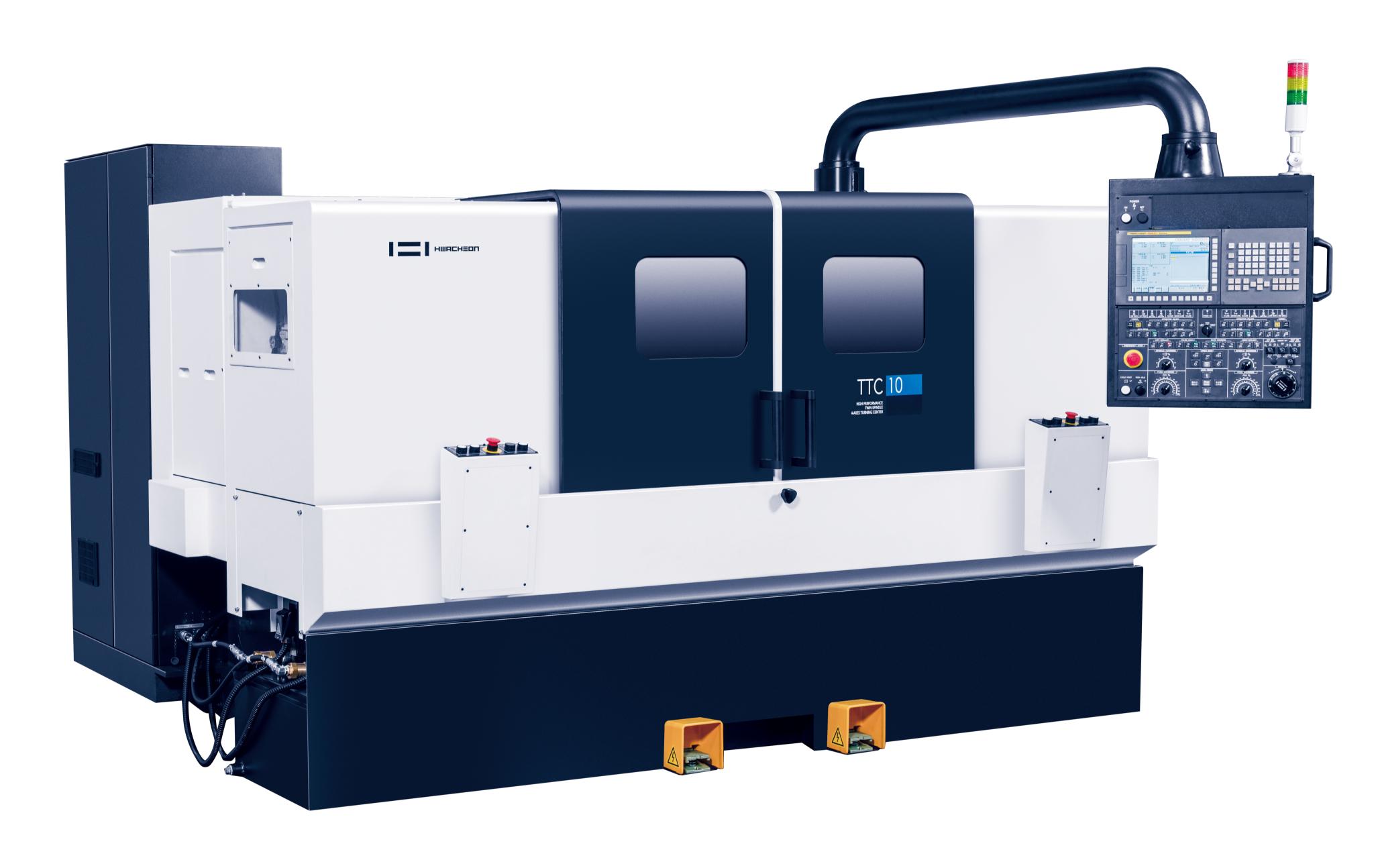

Hwacheon TTC-10
Hwacheon TTC-10 features Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software, designed for accurate and reliable production turning.
Description
Hwacheon TTC-10 is a turning centre built around Hwacheon turning centre with rigid construction, thermal stability and productivity-focused control software. It is intended for automotive, hydraulic and general engineering work, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
- Twin spindle configuration with independent Z-axis control
- Symmetrical spindle design for efficient part transfer and balanced machining
- Short spindle distance for faster cycle times and improved productivity
- Wide Turcite-coated box guideways for maximum rigidity
- Excellent vibration absorption during heavy-duty cutting operations
- Superior surface finishes and long-term machining accuracy
- High-rigidity unibody machine base for enhanced stability
- Optimised thermal management to minimise thermal displacement
- Fast hydraulic turret indexing of just 0.4 seconds per station
- Reduced non-cutting time for increased productivity
- Automation-ready for gantry loaders and integrated manufacturing systems
- Ideal for continuous, high-volume and lights-out production environments
- Designed for precision, reliability and long-term performance
SPECIFICATIONS
| Specification | Value |
|---|---|
| Chuck Size | 10" + 10" |
| Maximum Cutting Diameter | 400 mm |
| Maximum Turning Length | 230 mm |
| Maximum Spindle Speed | 2,000 rpm (Optional 3,500 rpm) |
| Spindle Motor Power | 18.5 / 15 kW |
| Turret Stations | 12 + 12 |
| Machine Weight | Approx. 9,500 kg |
