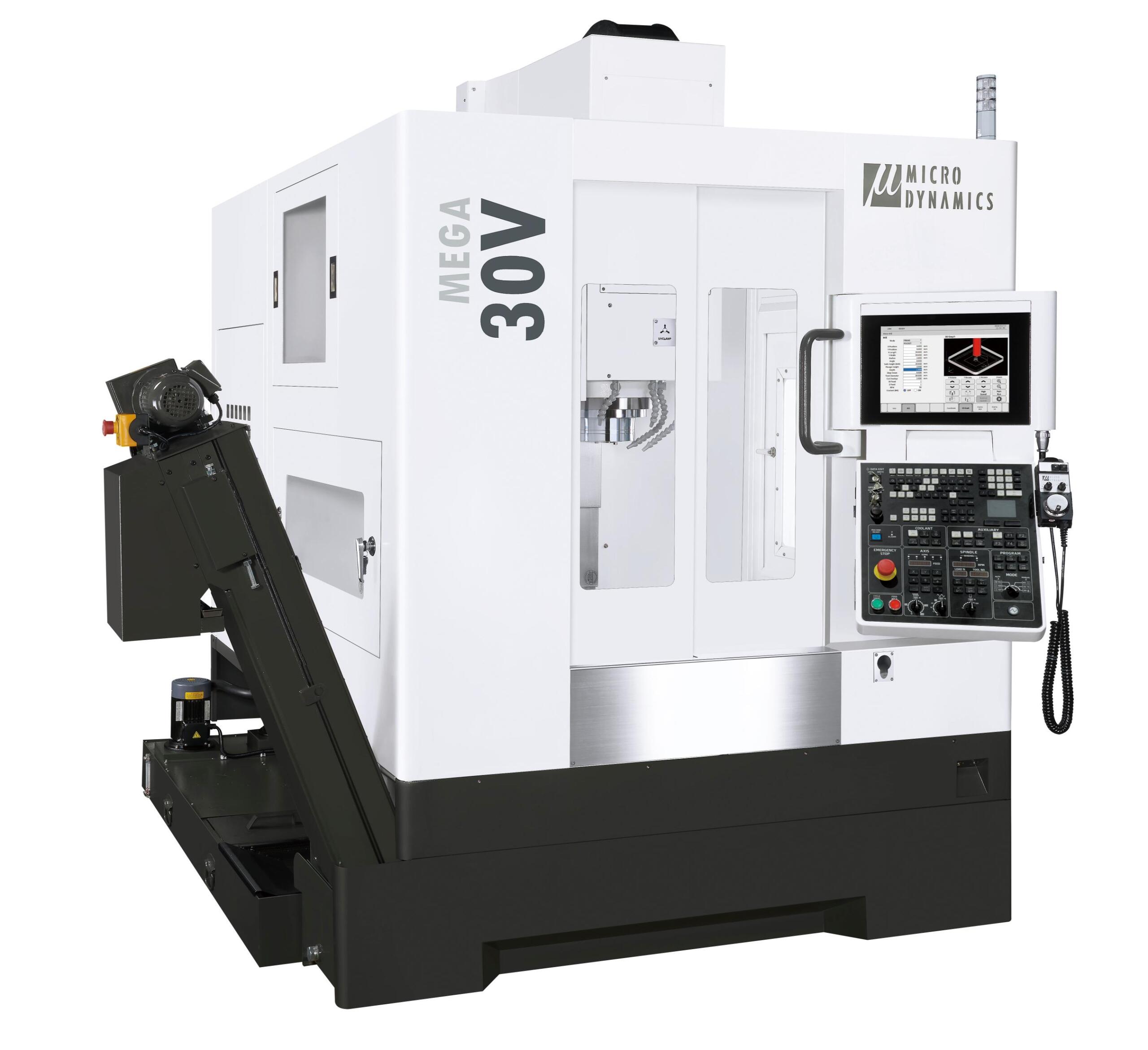

Micro Dynamics 30V
The Micro Dynamics MEGA 30V is a high-speed vertical machining centre featuring a 15,000 rpm spindle, 30-tool ATC, Mitsubishi CNC control, and advanced thermal compensation technology. Designed for precision machining and high metal removal rates, it delivers exceptional productivity and accuracy.
Description
The Micro Dynamics MEGA 30V is a high-speed vertical machining centre designed for precision machining and high metal removal rates. Built around a rigid Meehanite FC300 cast iron structure, the machine combines high spindle performance, rapid axis movements, and advanced thermal compensation technology to deliver consistent accuracy in demanding production environments.
The machine features a 15,000 rpm built-in spindle delivering 41 HP and 141 Nm of torque, providing the performance required for a wide range of machining applications. Large cross-roller linear guideways and pre-tensioned ball screws enhance rigidity and positioning accuracy, while rapid traverse rates of up to 52 m/min help minimise non-cutting time.
Micro Dynamics’ DYPEC® thermal compensation system continuously monitors and compensates for thermal growth, maintaining machining accuracy during extended production runs. The machine is controlled by the Mitsubishi M830VW CNC platform and enhanced with the Micro Dynamics HMI, providing intuitive touchscreen operation and simplified machine management.
With a 30-tool automatic tool changer, integrated chip management system, and high-speed rigid tapping capability, the MEGA 30V is well suited to aerospace, medical, precision engineering, and general manufacturing applications requiring productivity, accuracy, and reliability.
Features
- 15,000 rpm built-in spindle
- 41 HP spindle motor with 141 Nm torque
- Travels of 760 × 510 × 510 mm
- 30-tool automatic tool changer
- 1.2-second tool-to-tool change time
- Rapid traverse rates up to 52 m/min
- DYPEC® thermal compensation technology
- Mitsubishi M830VW CNC control
- Heavy-duty Meehanite FC300 cast iron construction
- Cross-roller linear guideways
- Pre-tensioned precision ball screws
- High-speed rigid tapping up to 6,000 rpm
- Integrated chip conveyor and dual auger system
- Touchscreen Micro Dynamics HMI interface
SPECIFICATIONS
| Specification | Value |
|---|---|
| X-Axis Travel | 760 mm |
| Y-Axis Travel | 510 mm |
| Z-Axis Travel | 510 mm |
| Table Size | 860 × 500 mm |
| Spindle Speed | 15,000 rpm |
| Spindle Power | 41 HP (30.6 kW) |
| Spindle Torque | 141 Nm |
| Tool Magazine Capacity | 30 Tools |
| Tool-to-Tool Change Time | 1.2 Seconds |
| Chip-to-Chip Time | 2.5 Seconds |
| Rapid Traverse (X) | 52 m/min |
| Rapid Traverse (Y) | 52 m/min |
| Rapid Traverse (Z) | 48 m/min |
| CNC Control | Mitsubishi M830VW |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Machine Structure | Meehanite FC300 Cast Iron |
| Rigid Tapping Speed | Up to 6,000 rpm |
