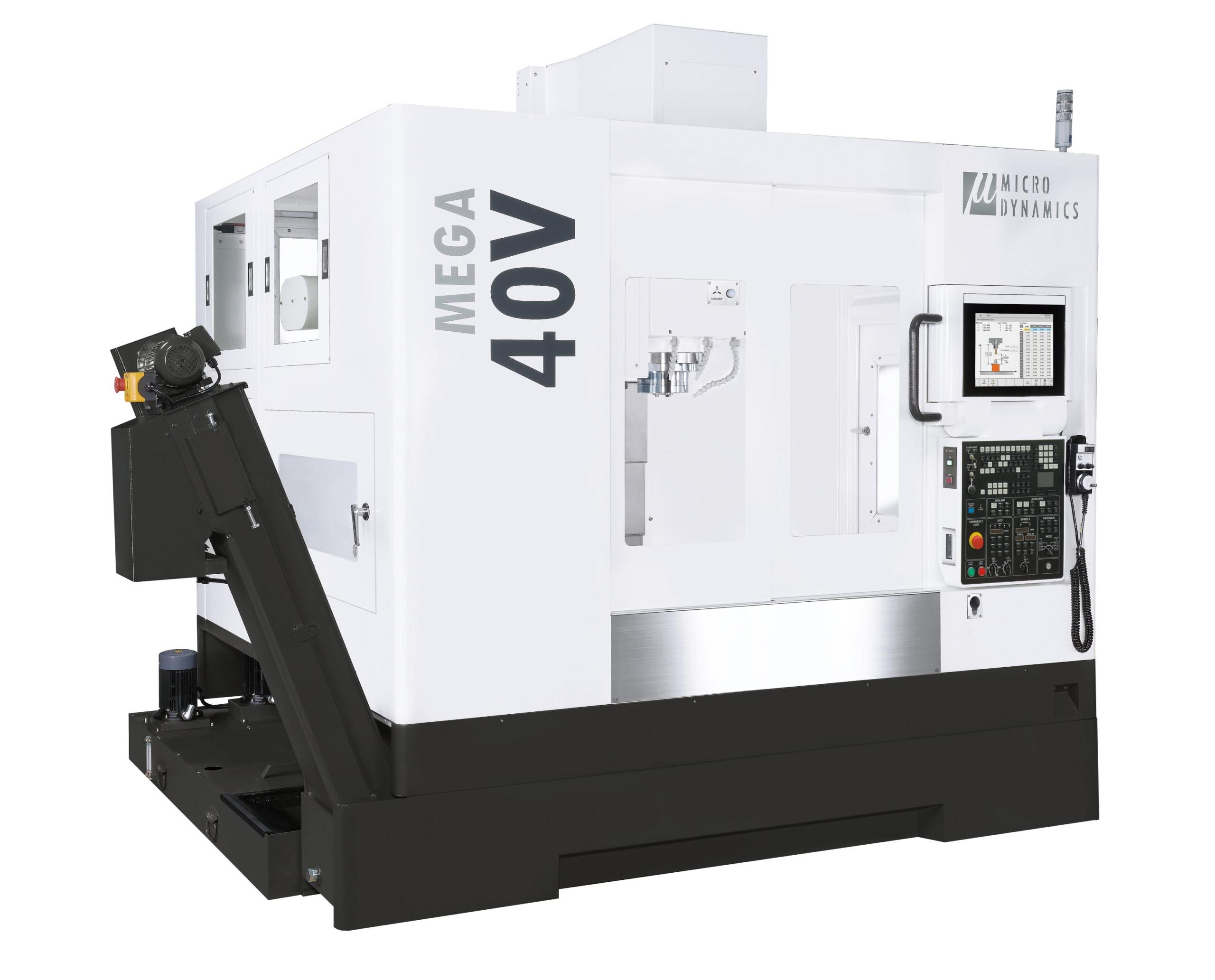

Micro Dynamics 40V – Mega
The Micro Dynamics MEGA 40V is a high-speed vertical machining centre featuring a 15,000 rpm spindle, 41 HP motor, advanced thermal compensation, and rapid tool-changing capabilities. Designed for heavy-duty machining and precision mould and die applications, it delivers exceptional productivity and accuracy.
Description
The Micro Dynamics MEGA 40V is a high-performance vertical machining centre designed for high-speed machining, heavy material removal, and precision mould and die applications. Combining a rigid machine structure with advanced motion control technology, the MEGA 40V delivers the productivity, accuracy, and surface finish required in demanding manufacturing environments.
Built on a heavy-duty cast iron platform weighing over 5,600 kg, the machine provides exceptional rigidity and vibration damping during aggressive cutting operations. The 15,000 rpm dual-contact spindle delivers 31 kW of power and 141 Nm of torque, enabling efficient machining across a wide range of materials. Optional spindle configurations of up to 24,000 rpm are available for high-speed finishing applications.
Advanced technologies such as DYPEC® thermal compensation and AI-assisted contour control help maintain accuracy and optimise surface finishes during complex machining operations. The machine is available with leading CNC control systems, including FANUC and Mitsubishi, and is supported by the intuitive Micro Dynamics HMI touchscreen interface.
With rapid traverse rates, fast tool changes, and flexible tooling configurations, the MEGA 40V is ideally suited to aerospace, mould and die, medical, automotive, and general precision manufacturing applications.
Features
- Travels of 1020 × 500 × 500 mm
- 15,000 rpm dual-contact spindle
- Optional spindle speeds up to 24,000 rpm
- 31 kW (41 HP) spindle motor
- 141 Nm spindle torque
- Heavy-duty cast iron construction
- DYPEC® thermal compensation technology
- AI contour control with advanced look-ahead processing
- Rapid traverse rates up to 52 m/min
- 24 to 40-tool automatic tool changer
- Tool-to-tool change times from 1.2 to 1.5 seconds
- FANUC or Mitsubishi CNC control options
- Micro Dynamics touchscreen HMI interface
- Designed for high-speed machining and mould & die applications
SPECIFICATIONS
| Specification | Value |
|---|---|
| X-Axis Travel | 1020 mm |
| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 500 mm |
| Spindle Type | 40 Taper Dual Contact (BBT / CAT / DIN / HSK) |
| Standard Spindle Speed | 15,000 rpm |
| Optional Spindle Speed | 18,000 – 24,000 rpm |
| Spindle Power | 31 kW (41 HP) |
| Maximum Torque | 141 Nm |
| Rapid Traverse Rate | Up to 52,000 mm/min |
| Tool Magazine Capacity | 24 – 40 Tools |
| Tool-to-Tool Change Time | 1.2 – 1.5 Seconds |
| CNC Control Options | FANUC or Mitsubishi |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Motion Control | AI Contour Control |
| Machine Weight | 5,620 kg |
