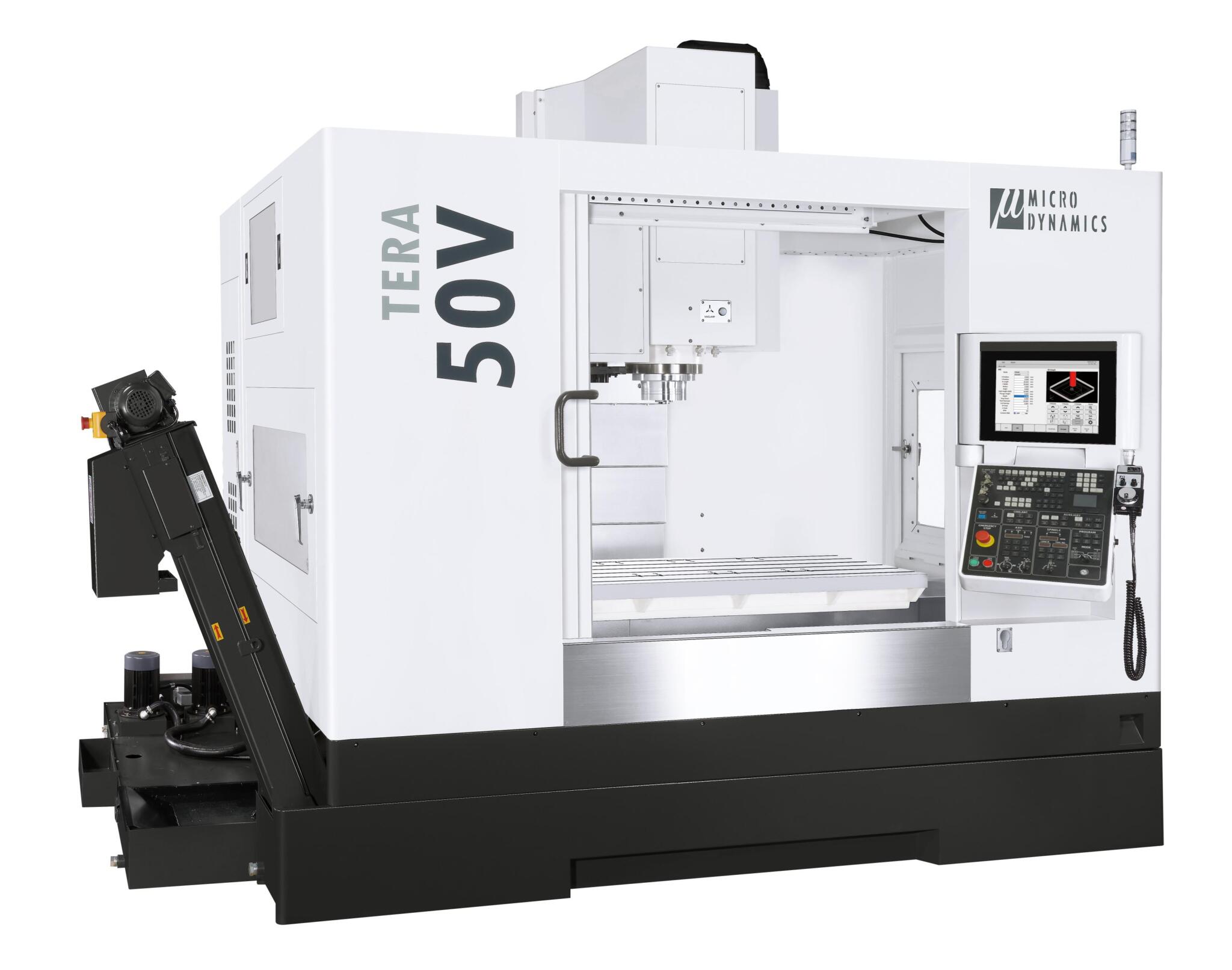

Micro Dynamics 50V
The Micro Dynamics TERA 50V is a heavy-duty vertical machining centre featuring a high-performance built-in spindle, Mitsubishi CNC control, DYPEC® thermal compensation, and rapid tool-changing capabilities. Designed for demanding manufacturing environments, it delivers exceptional rigidity, productivity, and machining accuracy.
Description
The Micro Dynamics TERA 50V is a high-performance vertical machining centre engineered for heavy-duty machining, deep drilling, and precision milling applications. Designed for industries such as aerospace, automotive, mould and die, semiconductor, and general engineering, the machine combines a rigid structure, powerful spindle performance, and advanced thermal compensation technology to deliver exceptional productivity and accuracy.
Built around a heavily ribbed FC300 Meehanite® cast iron structure, the TERA 50V provides outstanding rigidity and vibration damping during demanding machining operations. The machine features a high-performance built-in spindle and rapid traverse rates, enabling fast material removal while maintaining excellent surface finishes and dimensional accuracy.
The Mitsubishi M830VW CNC control, combined with the Micro Dynamics HMI, provides intuitive operation, simplified setup procedures, and advanced machining functionality. DYPEC® thermal compensation continuously monitors and corrects thermal growth effects, helping maintain machining accuracy throughout extended production cycles.
With high-speed tool changing, expandable tool storage capacity, and a compact footprint relative to its travel range, the TERA 50V is designed to maximise productivity while minimising floor space requirements.
Features
- Travels of 1270 × 710 × 635 mm
- 15,000 rpm built-in spindle
- Optional 18,000 rpm and 20,000 rpm spindle configurations
- Up to 31 kW spindle power
- Up to 141 Nm spindle torque
- Mitsubishi M830VW CNC control
- Micro Dynamics HMI interface
- DYPEC® thermal compensation technology
- FC300 Meehanite® cast iron construction
- Rapid traverse rates up to 52 m/min
- High-speed automatic tool changer
- Standard 40-tool magazine capacity
- Expandable tool storage up to 120 tools
- Compact machine footprint
- Designed for heavy-duty machining and mould & die applications
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | Vertical Machining Centre |
| X-Axis Travel | 1270 mm |
| Y-Axis Travel | 710 mm |
| Z-Axis Travel | 635 mm |
| Table Size | 1420 × 700 mm |
| Spindle Speed | 15,000 rpm |
| Optional Spindle Speeds | 18,000 rpm / 20,000 rpm |
| Spindle Power | Up to 31 kW |
| Spindle Torque | Up to 141 Nm |
| Rapid Traverse (X/Y) | 52 m/min |
| Rapid Traverse (Z) | 48 m/min |
| Tool Magazine Capacity | 40 Tools Standard |
| Optional Tool Capacity | 60 / 90 / 120 Tools |
| Tool-to-Tool Change Time | 1.2 Seconds |
| CNC Control | Mitsubishi M830VW |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Machine Structure | FC300 Meehanite® Cast Iron |
| Machine Footprint | 3606 × 2478 mm |
