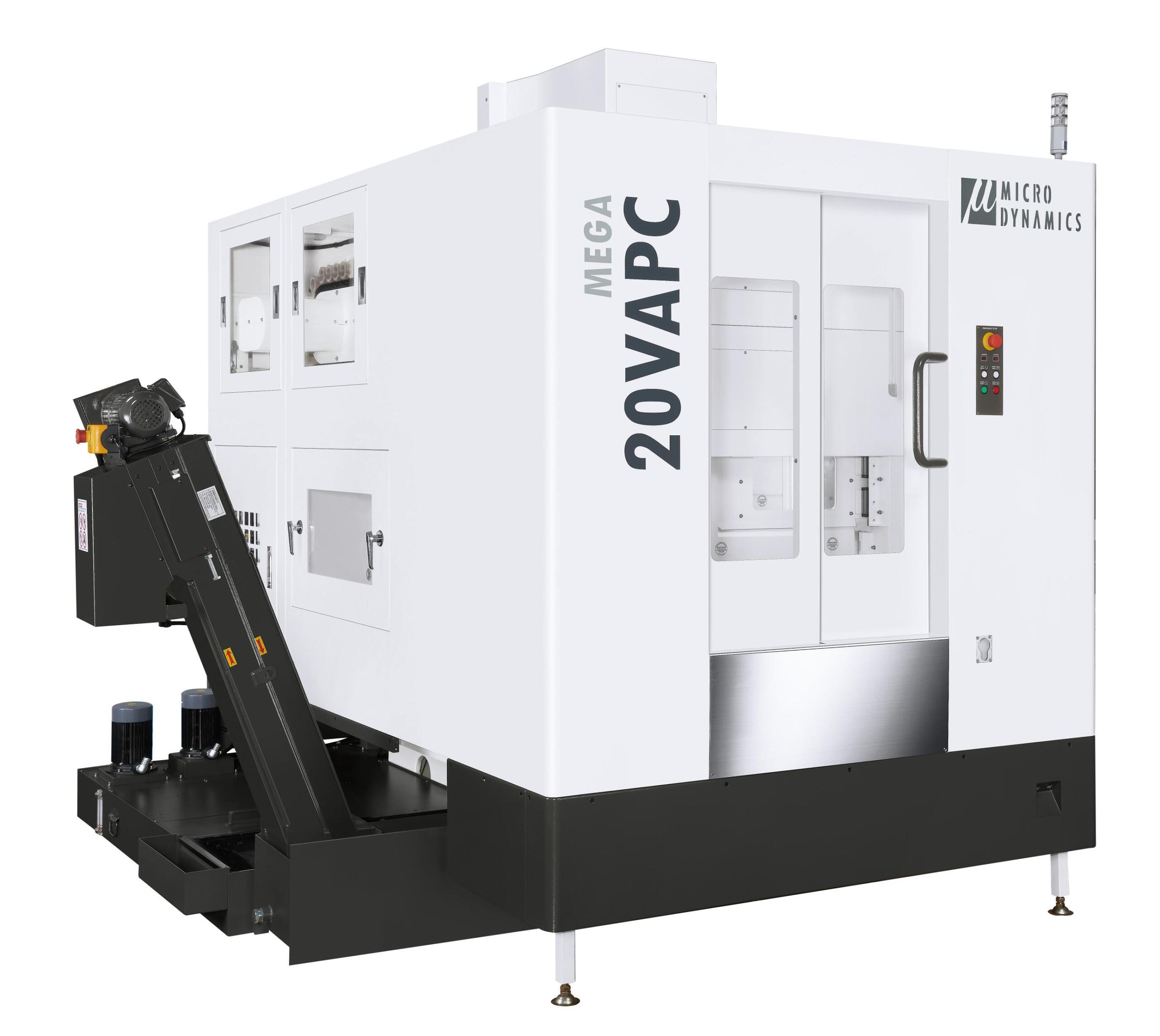

Micro Dynamics MEGA 20V APC
The Micro Dynamics MEGA 20V APC is a high-production vertical machining centre featuring a dual-pallet automatic pallet changer, 15,000 rpm spindle, and advanced thermal compensation technology. Designed for continuous manufacturing, it maximises productivity while maintaining exceptional machining accuracy.
Description
The Micro Dynamics MEGA 20V APC is a high-production vertical machining centre designed to maximise spindle utilisation through automated pallet handling and high-speed machining performance. Featuring a servo-driven automatic pallet changer, the machine enables continuous production by reducing setup times and minimising non-cutting operations.
The dual-pallet system exchanges pallets in just 8.5 seconds, allowing operators to prepare the next job while machining continues on the active pallet. Combined with rapid tool changes and high feed rates, the MEGA 20V APC is ideally suited to lights-out manufacturing and high-volume production environments.
Built on a heavily ribbed FC300 Meehanite cast iron structure, the machine delivers excellent rigidity and vibration damping for demanding machining applications. Advanced technologies such as DYPEC® thermal compensation continuously monitor and correct thermal growth effects, helping maintain machining accuracy during long production runs.
The machine is equipped with Mitsubishi CNC control and the Micro Dynamics HMI interface, providing intuitive operation, simplified setup procedures, and efficient program management. Its compact footprint makes it an excellent solution for manufacturers seeking high productivity without sacrificing valuable floor space.
Features
- Dual-pallet automatic pallet changer (APC)
- 8.5-second pallet exchange time
- 15,000 rpm spindle as standard
- Optional 18,000 rpm and 20,000 rpm spindle configurations
- 40-tool high-speed automatic tool changer
- 1.2-second tool-to-tool change time
- Rapid traverse rates up to 52 m/min
- DYPEC® thermal compensation technology
- Mitsubishi M830VW CNC control
- Micro Dynamics HMI interface
- FC300 Meehanite cast iron construction
- FEA-optimised machine structure
- Designed for lights-out and continuous production
- Compact machine footprint
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | Vertical Machining Centre with APC |
| X-Axis Travel | 610 mm |
| Y-Axis Travel | 508 mm |
| Z-Axis Travel | 508 mm |
| Pallet System | 2-Station Automatic Pallet Changer |
| Pallet Exchange Time | 8.5 Seconds |
| Standard Spindle Speed | 15,000 rpm |
| Optional Spindle Speeds | 18,000 rpm / 20,000 rpm |
| Maximum Spindle Power | Up to 35 kW |
| Tool Magazine Capacity | 40 Tools |
| Tool-to-Tool Change Time | 1.2 Seconds |
| Rapid Traverse (X/Y) | 52 m/min |
| Rapid Traverse (Z) | 48 m/min |
| CNC Control | Mitsubishi M830VW |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Machine Structure | FC300 Meehanite Cast Iron |
| Application | High-Production & Lights-Out Manufacturing |
