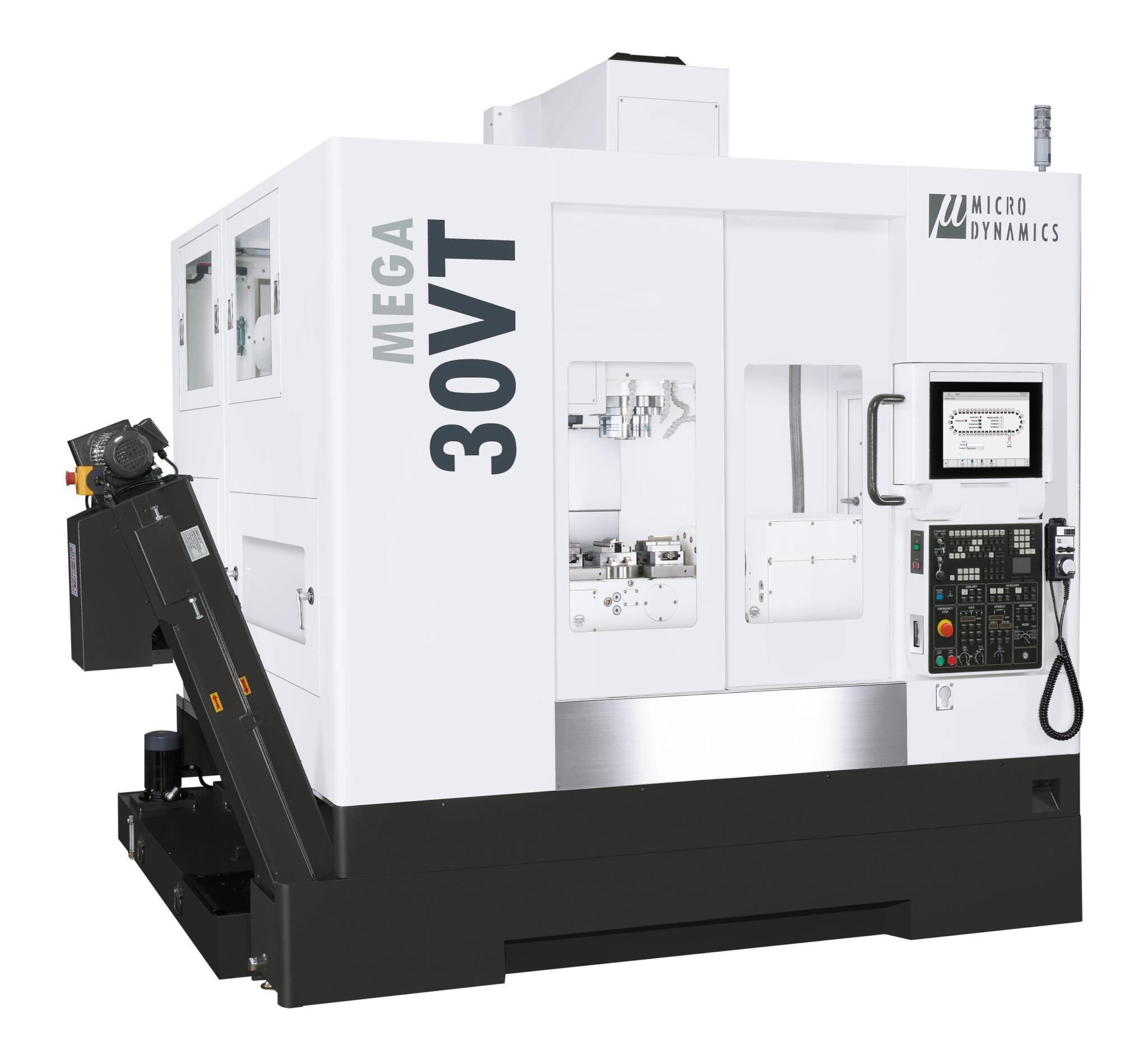

Micro Dynamics MEGA 30VT
The Micro Dynamics MEGA 30VT is a compact 4+1 axis vertical machining centre featuring an integrated trunnion table, 15,000 rpm spindle, 40-tool ATC, and DYPEC® thermal compensation technology. Designed for multi-sided machining, it delivers high productivity, accuracy, and process efficiency.
Description
The Micro Dynamics MEGA 30VT is a compact 4+1 axis vertical machining centre designed for high-precision, multi-sided machining in a single setup. Featuring an integrated trunnion table and advanced machining technologies, the machine enables efficient access to multiple faces of a workpiece, reducing setup times and improving overall productivity.
Built on a heavily ribbed FC300 Meehanite cast iron structure, the MEGA 30VT delivers excellent rigidity, vibration damping, and thermal stability during demanding machining operations. The high-performance built-in spindle provides the speed and torque required for both roughing and finishing applications, while the integrated trunnion table allows complex components to be machined with greater efficiency and accuracy.
Micro Dynamics’ DYPEC® thermal compensation technology continuously monitors and compensates for thermal growth effects, helping maintain machining accuracy throughout extended production cycles. Combined with the Mitsubishi M830VW CNC control and touchscreen HMI, the machine offers intuitive operation, advanced motion control, and efficient production management.
Its compact footprint, high-speed tool changing, and multi-axis capabilities make the MEGA 30VT ideally suited to aerospace, medical, mould and die, and precision engineering applications.
Features
- 4+1 axis trunnion table machining centre
- Travels of 762 × 508 × 442 mm
- 15,000 rpm built-in spindle
- Optional spindle speeds up to 24,000 rpm
- 31 kW (41 HP) spindle motor
- 141 Nm spindle torque
- 40 taper spindle
- 40-station automatic tool changer
- 1.2-second tool-to-tool change time
- DYPEC® thermal compensation technology
- Mitsubishi M830VW CNC control
- 15-inch touchscreen HMI
- FC300 Meehanite cast iron construction
- Rapid traverse rates up to 52 m/min
- Maximum table load of 150 kg
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | 4+1 Axis Vertical Machining Centre |
| X-Axis Travel | 762 mm |
| Y-Axis Travel | 508 mm |
| Z-Axis Travel | 442 mm |
| Maximum Table Load | 150 kg |
| Spindle Taper | 40 Taper |
| Spindle Speed | 15,000 rpm |
| Optional Spindle Speed | Up to 24,000 rpm |
| Spindle Power | 31 kW (41 HP) |
| Maximum Torque | 141 Nm |
| Tool Magazine Capacity | 40 Tools |
| Tool-to-Tool Change Time | 1.2 Seconds |
| Rapid Traverse (X/Y) | 52 m/min |
| Rapid Traverse (Z) | 48 m/min |
| CNC Control | Mitsubishi M830VW |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Machine Structure | FC300 Meehanite Cast Iron |
