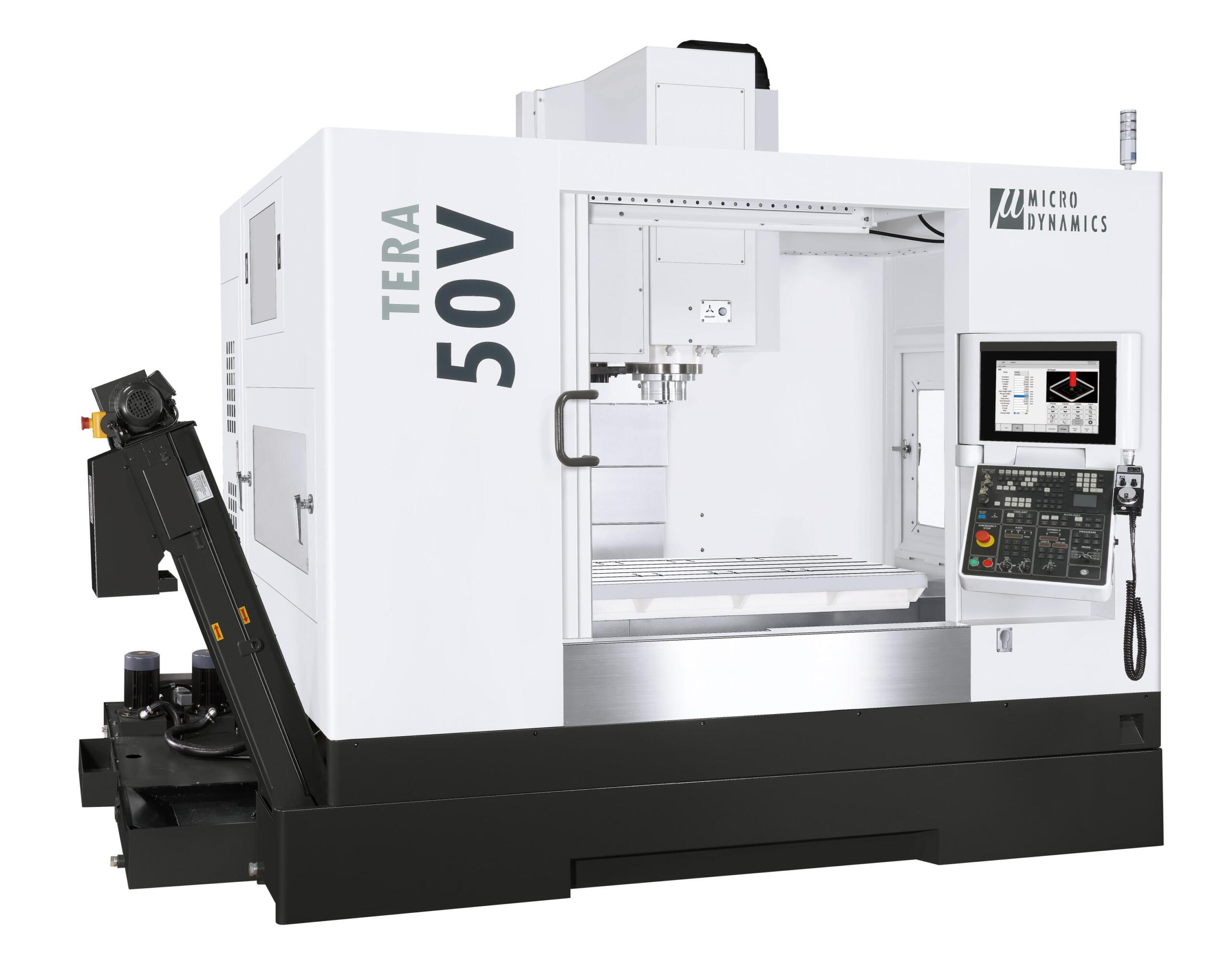

Micro Dynamics TERA 50V
The Micro Dynamics TERA 50V is a high-performance vertical machining centre featuring a 15,000 rpm spindle, DYPEC® thermal compensation, Mitsubishi CNC control, and a 40-tool automatic tool changer. Designed for precision machining and heavy material removal, it delivers exceptional productivity and accuracy.
Description
The Micro Dynamics TERA 50V is a high-performance vertical machining centre designed for demanding production environments requiring heavy material removal, precision machining, and exceptional reliability. Combining a large work envelope with a compact machine footprint, the TERA 50V is ideally suited to aerospace, mould and die, automotive, and general engineering applications.
Built around a heavily ribbed FC300 Meehanite cast iron structure, the machine delivers excellent rigidity and vibration damping for stable machining performance. The high-performance built-in spindle provides rapid acceleration, high torque output, and excellent thermal stability, enabling efficient machining across a wide range of materials and applications.
Micro Dynamics’ patented DYPEC® thermal compensation technology continuously monitors and corrects thermal growth effects, helping maintain micron-level accuracy during long production runs. Combined with the Mitsubishi M830VW CNC control and Micro Dynamics HMI, operators benefit from intuitive machine control, simplified programming, and efficient setup procedures.
The TERA 50V also features a high-speed automatic tool changer, rapid axis movements, and expandable tool storage capacity, making it a versatile solution for manufacturers seeking high productivity and precision in a compact footprint.
Features
- Travels of 1270 × 710 × 635 mm
- 15,000 rpm built-in spindle
- Optional 18,000 rpm and 20,000 rpm spindle configurations
- 41 HP spindle motor
- 104 ft-lbs spindle torque
- 40 taper dual-contact spindle
- DYPEC® thermal compensation technology
- Mitsubishi M830VW CNC control
- Micro Dynamics HMI interface
- FC300 Meehanite cast iron construction
- 40-tool automatic tool changer
- Expandable tool capacity up to 120 tools
- 1.2-second tool-to-tool change time
- Rapid traverse rates up to 52 m/min
- Compact machine footprint
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | 3-Axis Vertical Machining Centre |
| X-Axis Travel | 1270 mm |
| Y-Axis Travel | 710 mm |
| Z-Axis Travel | 635 mm |
| Table Size | 1420 × 700 mm |
| Maximum Table Load | 1500 kg |
| Spindle Taper | 40 Taper Dual Contact |
| Standard Spindle Speed | 15,000 rpm |
| Optional Spindle Speeds | 18,000 rpm / 20,000 rpm |
| Spindle Power | 41 HP |
| Maximum Torque | 104 Ft-Lbs |
| Rapid Traverse (X/Y) | 52 m/min |
| Rapid Traverse (Z) | 48 m/min |
| Tool Magazine Capacity | 40 Tools Standard |
| Optional Tool Capacity | 60 / 90 / 120 Tools |
| Tool-to-Tool Change Time | 1.2 Seconds |
| CNC Control | Mitsubishi M830VW |
| Thermal Compensation | DYPEC® Dynamic Predictive Error Compensation |
| Machine Structure | FC300 Meehanite Cast Iron |
| Machine Footprint | 3606 × 2478 mm |
