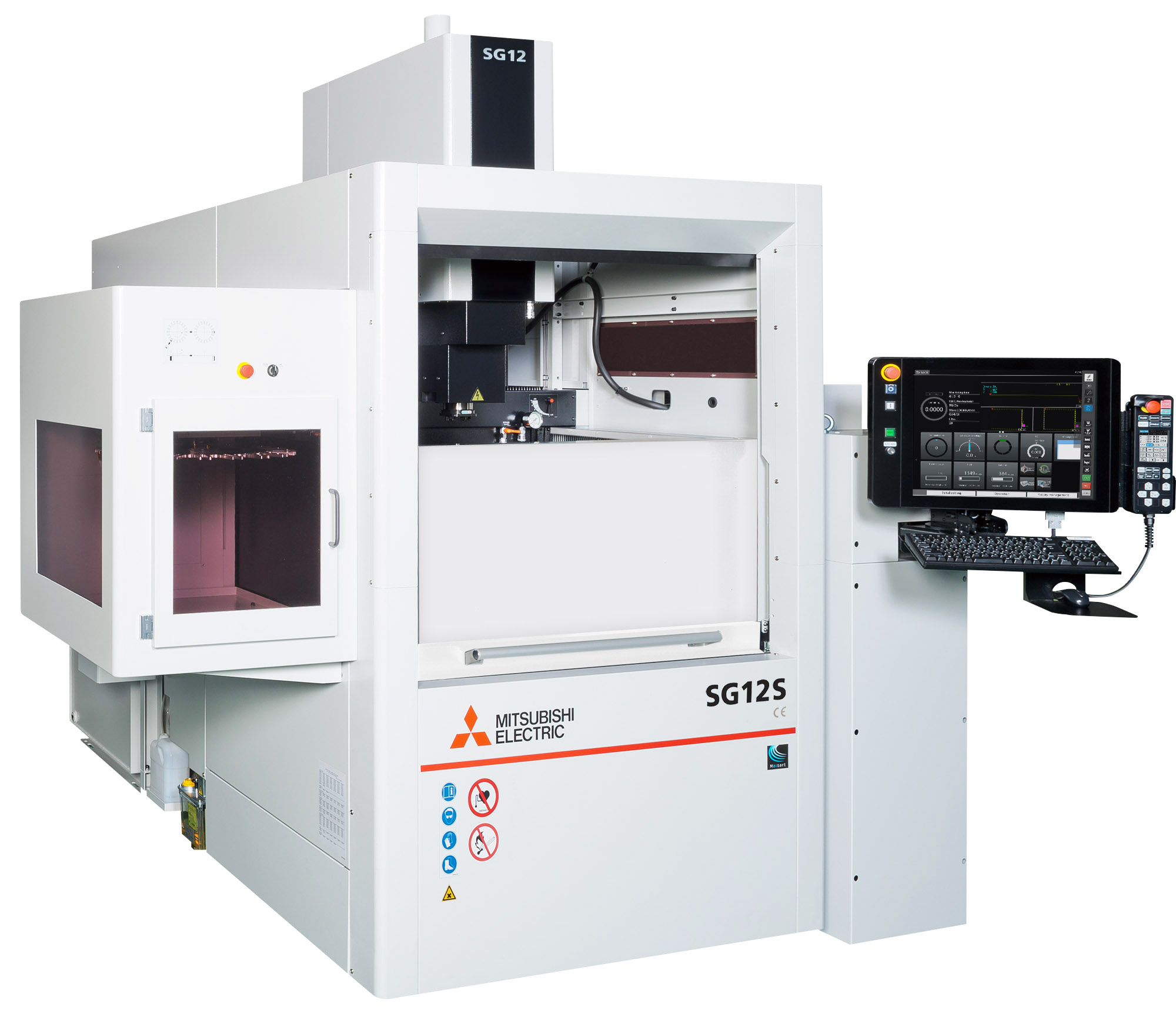

Mitsubishi SG-12S
The Mitsubishi SG-12S is a high-performance die-sinking EDM machine featuring Mitsubishi AI technology, advanced GV-series power supplies, and a user-friendly three-sided drop tank design. Engineered for precision mould making and complex component manufacturing, it delivers exceptional accuracy, productivity, and surface finish quality.
Description
The Mitsubishi SG-12S is a high-performance die-sinking EDM machine designed for precision mould manufacturing and complex component production. Combining Mitsubishi's advanced EDM technology with intelligent AI-assisted machining, the SG-12S delivers exceptional accuracy, productivity, and surface finish quality for demanding applications in aerospace, medical, tooling, electronics, and precision engineering industries.
Powered by Mitsubishi's M800 control platform and advanced GV-series power supply technology, the machine optimises machining conditions automatically through Maisart AI and IDPM3 technology. These intelligent systems help reduce electrode wear, improve machining efficiency, and simplify the production of complex geometries.
The machine features a three-sided lowering work tank that provides excellent access to the machining area, improving setup efficiency and operator ergonomics. High-speed axis movements and rapid lift-off capability further enhance productivity, particularly when machining deep cavities, ribs, and intricate mould features.
Built-in collision protection software safeguards machine components and electrodes, while the robust machine structure ensures stability and precision throughout long machining cycles.
Features
- High-performance die-sinking EDM machine
- Mitsubishi M800 CNC control
- Large 19-inch touchscreen interface
- Maisart AI machining technology
- IDPM3 intelligent process optimisation
- Reduced electrode wear and improved machining efficiency
- Three-sided lowering work tank design
- Excellent operator access and ergonomics
- High-speed Z-axis acceleration up to 1.6 G
- Rapid axis movements up to 20 m/min
- Advanced collision protection software
- Suitable for deep cavity and rib machining
- GV80 power supply standard
- Optional GV120 power supply
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | Die-Sinking EDM |
| Maximum Workpiece Dimensions | 900 × 650 × 350 mm |
| Maximum Workpiece Weight | 1000 kg |
| Table Size | 700 × 500 mm |
| Maximum Electrode Weight | 50 kg |
| Z-Axis Acceleration | Up to 1.6 G |
| Rapid Traverse Speed | Up to 20 m/min |
| Power Supply | GV80 Standard |
| Optional Power Supply | GV120 |
| CNC Control | Mitsubishi M800 |
| Display | 19" Touchscreen |
| AI Technology | Maisart AI |
| Process Optimisation | IDPM3 |
| Tank Design | Three-Sided Lowering Tank |
| Collision Protection | Standard |
| Machine Weight | 3500 kg |
