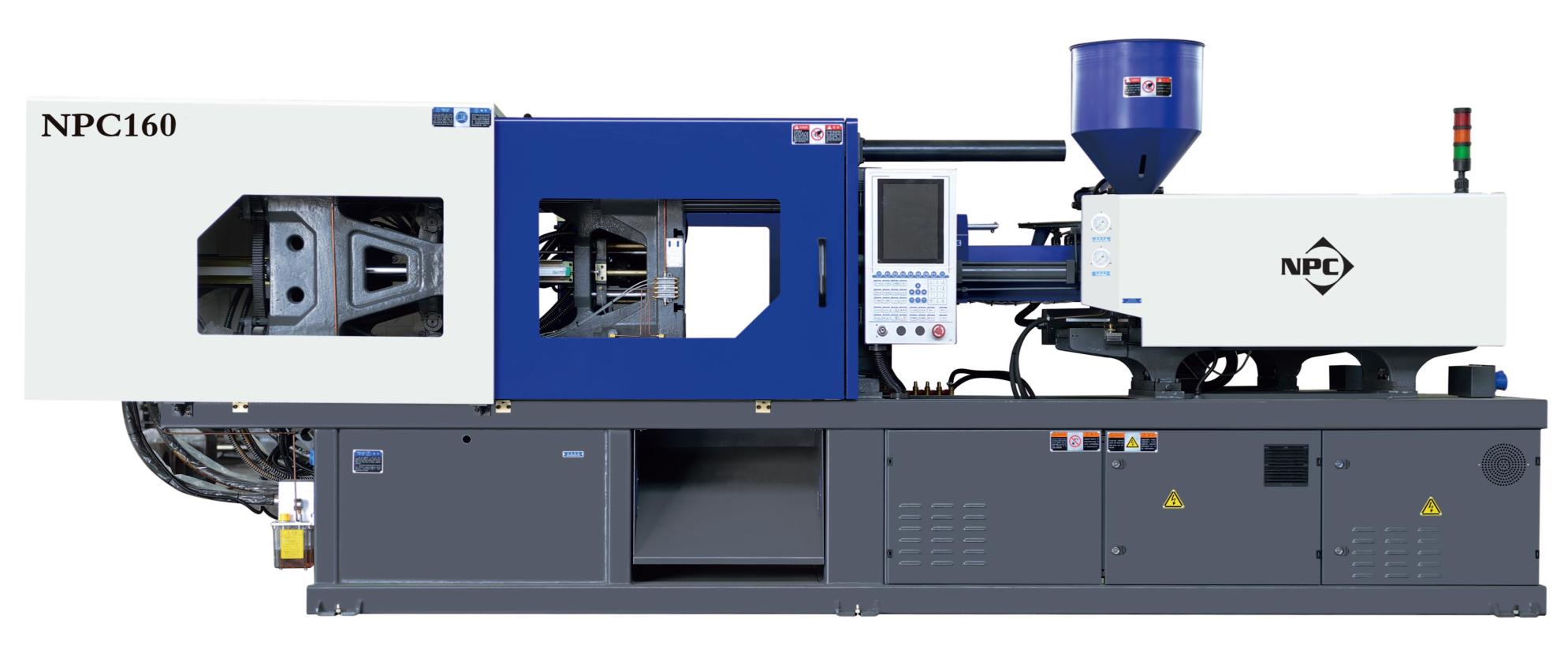

NPC160 Servo 160 Ton Injection Molding Machine
The NPC160 Servo is a 160-ton servo hydraulic injection moulding machine designed for high-precision plastic component production. Featuring advanced servo drive technology, precision control systems, and energy-efficient operation, it delivers exceptional repeatability, productivity, and moulding accuracy.
Description
The NPC160 Servo is a high-precision servo hydraulic injection moulding machine designed for manufacturers requiring exceptional accuracy, repeatability, and energy efficiency. With a 160-ton clamping force and advanced servo drive technology, the machine is ideally suited to the production of medical components, electronic parts, precision engineering products, and other high-tolerance plastic components.
Its advanced servo energy system automatically adjusts motor output to match machine demand, significantly reducing energy consumption, water usage, and operating noise compared to conventional hydraulic machines. The precision-controlled hydraulic system delivers accurate and repeatable mould movements, ensuring consistent part quality throughout long production runs.
The NPC160 Servo is equipped with a durable bi-metallic screw and barrel assembly, dual-cylinder balanced injection system, and digital proportional back pressure control to provide stable and reliable processing across a wide range of thermoplastic materials. Combined with an intuitive 10-inch LCD control system and automation-ready functionality, the machine offers an efficient and versatile solution for modern injection moulding operations.
Features
- 160-ton clamping force
- Energy-efficient servo hydraulic drive system
- Positioning accuracy of ±0.1 mm
- Reduced energy and water consumption
- Low-noise machine operation
- Bi-metallic screw and barrel assembly
- Dual-cylinder balanced injection system
- Digital proportional back pressure control
- 10-inch LCD control screen
- Closed-loop injection monitoring
- Multi-language operator interface
- Suitable for PP, PC, ABS, PET, PVC, and engineering plastics
- High repeatability for precision manufacturing
- Automation-ready configuration
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | Servo Hydraulic Injection Moulding Machine |
| Clamping Force | 160 Tons |
| Distance Between Tie Bars | Approx. 470 × 470 mm |
| Maximum Pump Pressure | 17.5 MPa |
| Positioning Accuracy | ±0.1 mm |
| Drive System | Servo Hydraulic |
| Control System | 10" LCD Multi-Language Controller |
| Injection System | Dual-Cylinder Balanced Injection |
| Screw & Barrel | Bi-Metallic Construction |
| Back Pressure Control | Digital Proportional Control |
| Suitable Materials | PP, PC, ABS, PET, PVC, Engineering Plastics |
| Application | Medical, Electronics, Precision Engineering, General Manufacturing |
