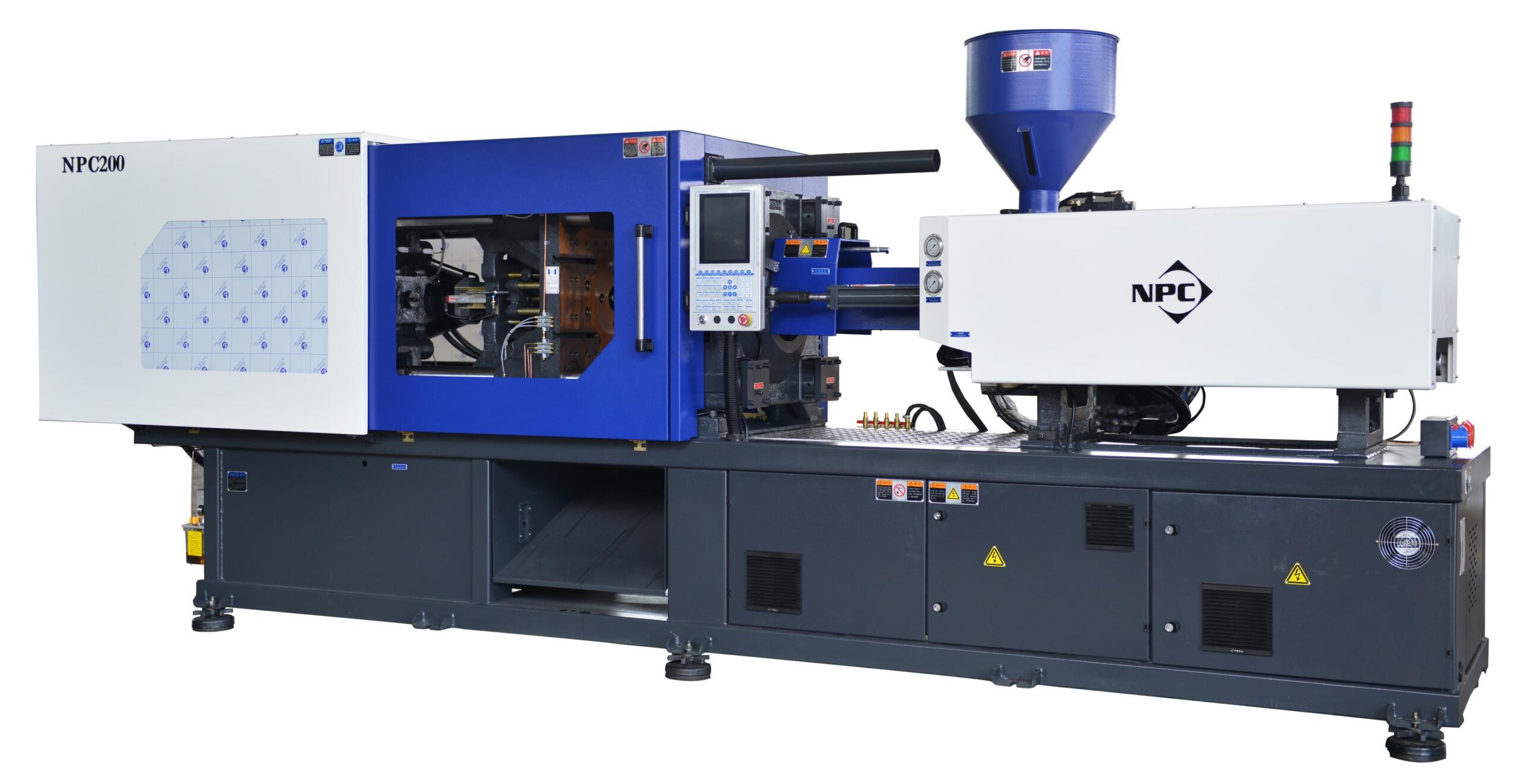

NPC200 Servo 200 Ton Injection Molding Machine
The NPC200 is a 200-ton servo hydraulic injection moulding machine featuring advanced closed-loop control, high-speed servo technology, and energy-efficient operation. Designed for precision moulding and high productivity, it delivers reliable performance while significantly reducing operating costs.
Description
The NPC200 is a high-performance 200-ton servo hydraulic injection moulding machine designed for manufacturers seeking precision, productivity, and energy efficiency. Equipped with an advanced servo motor drive system and intelligent closed-loop process control, the NPC200 delivers consistent part quality while significantly reducing power consumption compared to conventional hydraulic machines.
The machine's servo-driven hydraulic system responds rapidly to changing production demands, supplying only the energy required during each stage of the moulding cycle. This results in lower operating costs, reduced heat generation, quieter operation, and improved overall efficiency. Fast response times and precise pressure control ensure stable injection performance and excellent repeatability for demanding moulding applications.
A robust toggle clamping system distributes force evenly across the mould, helping to improve product consistency and extend machine life. Combined with automatic lubrication, user-friendly controls, and flexible injection unit configurations, the NPC200 is well suited to automotive, consumer products, electronics, industrial components, and general plastic manufacturing applications.
Features
- 200-ton clamping force
- Advanced servo motor drive system
- Energy savings of up to 50%
- Fast response time of 35–40 milliseconds
- Closed-loop pressure and speed control
- Heavy-duty toggle clamping mechanism
- Even mould force distribution
- Chrome-plated tie bars
- Anti-tilt machine support design
- Automatic centralised lubrication system
- Multi-stage injection and holding control
- User-friendly computerised control system
- Reduced noise and heat generation
- Suitable for high-volume production applications
SPECIFICATIONS
| Specification | Value |
|---|---|
| Machine Type | Servo Hydraulic Injection Moulding Machine |
| Clamping Force | 200 Tons (2000 kN) |
| Distance Between Tie Bars | 530 × 530 mm |
| Maximum Pump Pressure | 17.5 MPa |
| Theoretical Shot Weight | Approx. 375 – 412 g |
| Servo Motor Power | 18.5 – 27.8 kW |
| Heating Power | Approx. 14.9 kW |
| Control System | Computerised Closed-Loop Control |
| Lubrication System | Automatic Centralised Lubrication |
| Machine Dimensions | Approx. 5700 × 1400 × 2200 mm |
| Machine Weight | Approx. 6300 – 7100 kg |
| Application | Precision Plastic Component Manufacturing |
