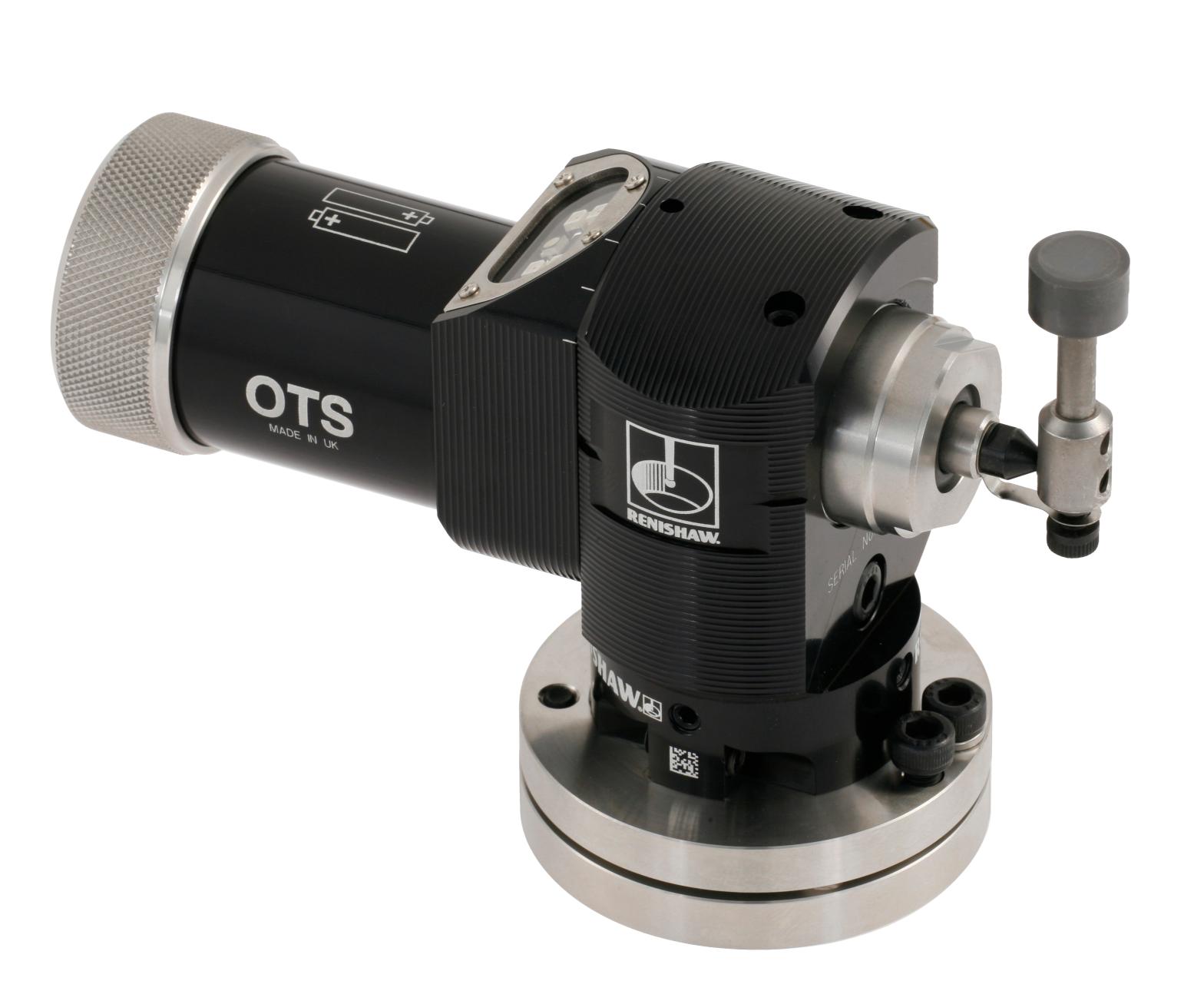

Renishaw OTS
The Renishaw OTS is a compact optical tool setter for CNC machining centres, providing automatic tool measurement, offset setting, and broken tool detection to improve accuracy, productivity, and process reliability.
Description
The Renishaw OTS (Optical Tool Setter) is a compact, table-mounted tool setting probe designed for automatic tool measurement and broken tool detection on CNC machining centres. Installed within the machine work envelope, the OTS allows tools to be measured quickly and accurately without manual intervention, helping to improve machining accuracy, reduce setup times, and support automated manufacturing processes.
Using Renishaw's proven optical transmission technology, the OTS automatically measures tool length and diameter, updates tool offsets, and detects broken or damaged tools before machining begins. By ensuring tools are correctly measured and monitored, manufacturers can improve part quality, reduce scrap, and maximise machine utilisation.
The OTS is suitable for a wide range of CNC milling applications and can be used alongside Renishaw spindle probes to provide a complete on-machine measurement solution for setup, inspection, and process control.
Features
- Automatic tool length measurement
- Automatic tool diameter measurement
- Broken tool detection
- Optical signal transmission technology
- Compact table-mounted design
- Automatic tool offset updates
- Reduces machine setup times
- Improves machining accuracy
- Supports automated manufacturing
- Reliable operation in machining environments
- Compatible with Renishaw optical systems
- Suitable for CNC milling applications
- Helps reduce scrap and rework
- Can be paired with Renishaw spindle probes
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product Type | Optical Tool Setter |
| Application | Tool Setting & Tool Breakage Detection |
| Transmission Method | Optical (Infrared) |
| Repeatability (2σ) | 1.0 μm |
| Mounting Type | Table Mounted |
| Protection Rating | IPX8 |
| Power Supply | Battery Powered |
| Battery Type | 2 × AA Batteries |
| Optical Compatibility | Renishaw OMI, OMM and Optical Receiver Systems |
| Tool Measurement | Length & Diameter |
| Broken Tool Detection | Yes |
| Typical Applications | CNC Milling, Tool Setting, Automated Production |
