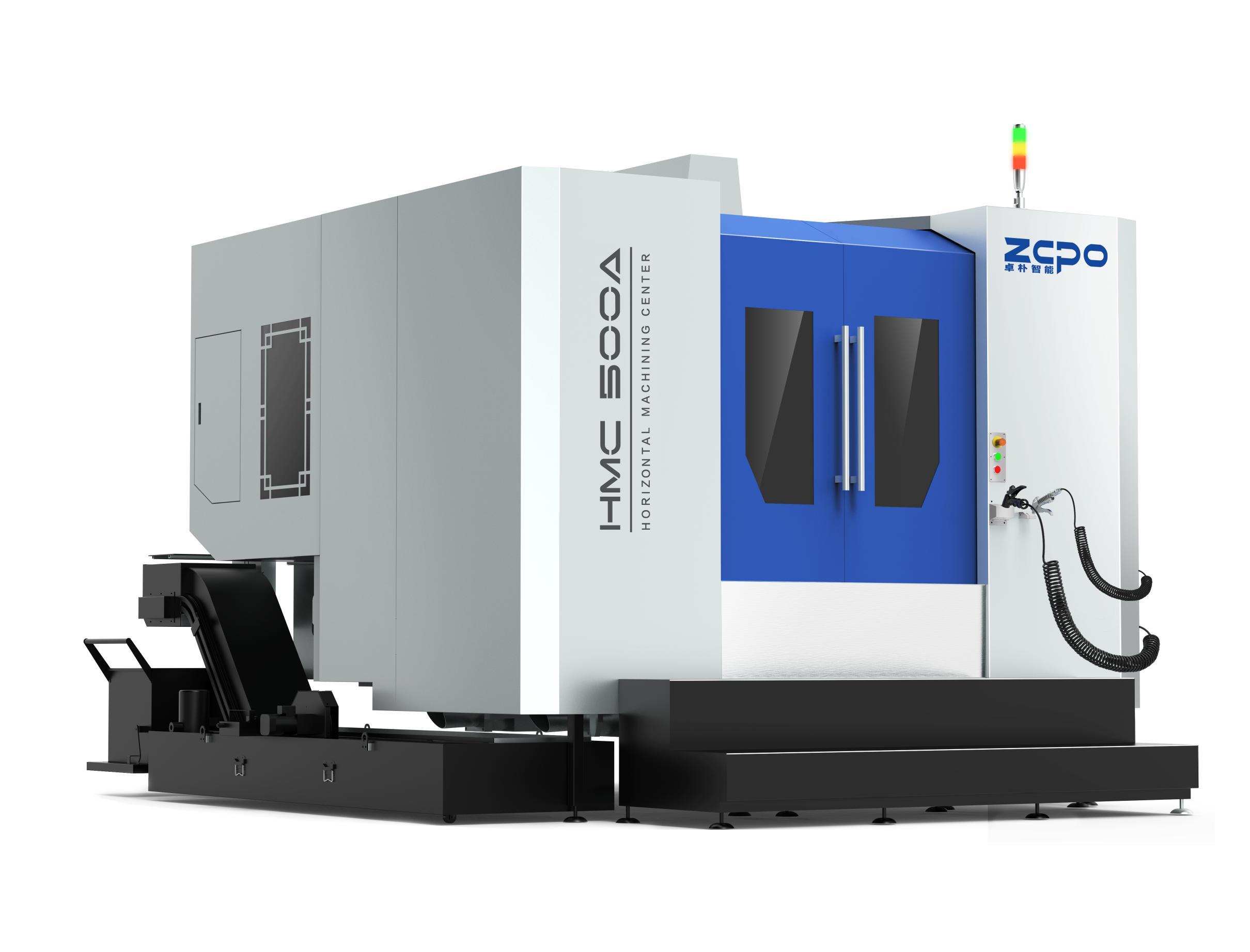

Zopo HMC500A
The ZOPO HMC500A Horizontal Machining Centre combines an inverted T-type structure, high-speed spindle technology, and automation-ready design for precision machining and high-volume manufacturing.
Description
The ZOPO HMC500A Horizontal Machining Centre is a heavy-duty, high-precision machining solution designed for automated production environments and large-batch manufacturing operations. Built around a robust inverted T-type structure with a moving-column design, the HMC500A delivers exceptional rigidity, stability, and cutting performance for demanding industrial applications.
Engineered for machining box-type components, moulds, engine blocks, and complex precision parts, the HMC500A combines high-speed spindle performance with outstanding thermal stability and positioning accuracy. Its rigid machine base, developed using advanced finite element analysis (FEA), minimises vibration and ensures consistent machining accuracy even during heavy-duty cutting operations.
The horizontal spindle orientation naturally promotes efficient chip evacuation, preventing chip accumulation and reducing heat build-up around the cutting area. Combined with automatic tool changing systems, pallet automation options, and rapid traverse rates, the HMC500A is ideally suited to automotive, aerospace, general engineering, and high-volume production environments.
Features
- Heavy-duty inverted T-type machine structure
- Moving-column design for enhanced rigidity
- High-torque BT50 spindle configuration
- High-speed spindle options up to 12,000 rpm
- Excellent chip evacuation through horizontal machining design
- Oil-cooled spindle housing for thermal stability
- FEA-optimised machine base construction
- High positioning and repeatability accuracy
- Rapid traverse rates up to 36 m/min
- Compatible with automatic tool changers
- Multi-pallet automation options available
- Designed for continuous production environments
SPECIFICATIONS
| Specification | HMC500A |
|---|---|
| Machine Type | Horizontal Machining Centre |
| Structure Design | Inverted T-Type, Moving Column |
| Axis Configuration | 3-Axis |
| Worktable Configuration | Single Worktable |
| Spindle Taper | BT50 |
| Maximum Spindle Speed | 8,000 – 12,000 rpm |
| Rapid Traverse Rate | Up to 36 m/min |
| Positioning Accuracy | ±0.008 mm |
| Repeatability Accuracy | ±0.004 mm |
| Guideway Type | Box Way or Linear Guide Configuration |
| Spindle Cooling | Oil-Cooled Spindle Housing |
| Machine Base Design | FEA Optimised Heavy Casting |
| Machine Weight | Heavy-Duty Construction (Typically > 4,000 kg) |
| Tool Changer Compatibility | Automatic Tool Changer (ATC) |
| Pallet Changer Compatibility | Available |
| Automation Integration | Yes |
| Thermal Stability | High |
| Chip Evacuation | Gravity-Assisted Horizontal Design |
| Production Capability | High-Volume Batch Manufacturing |
