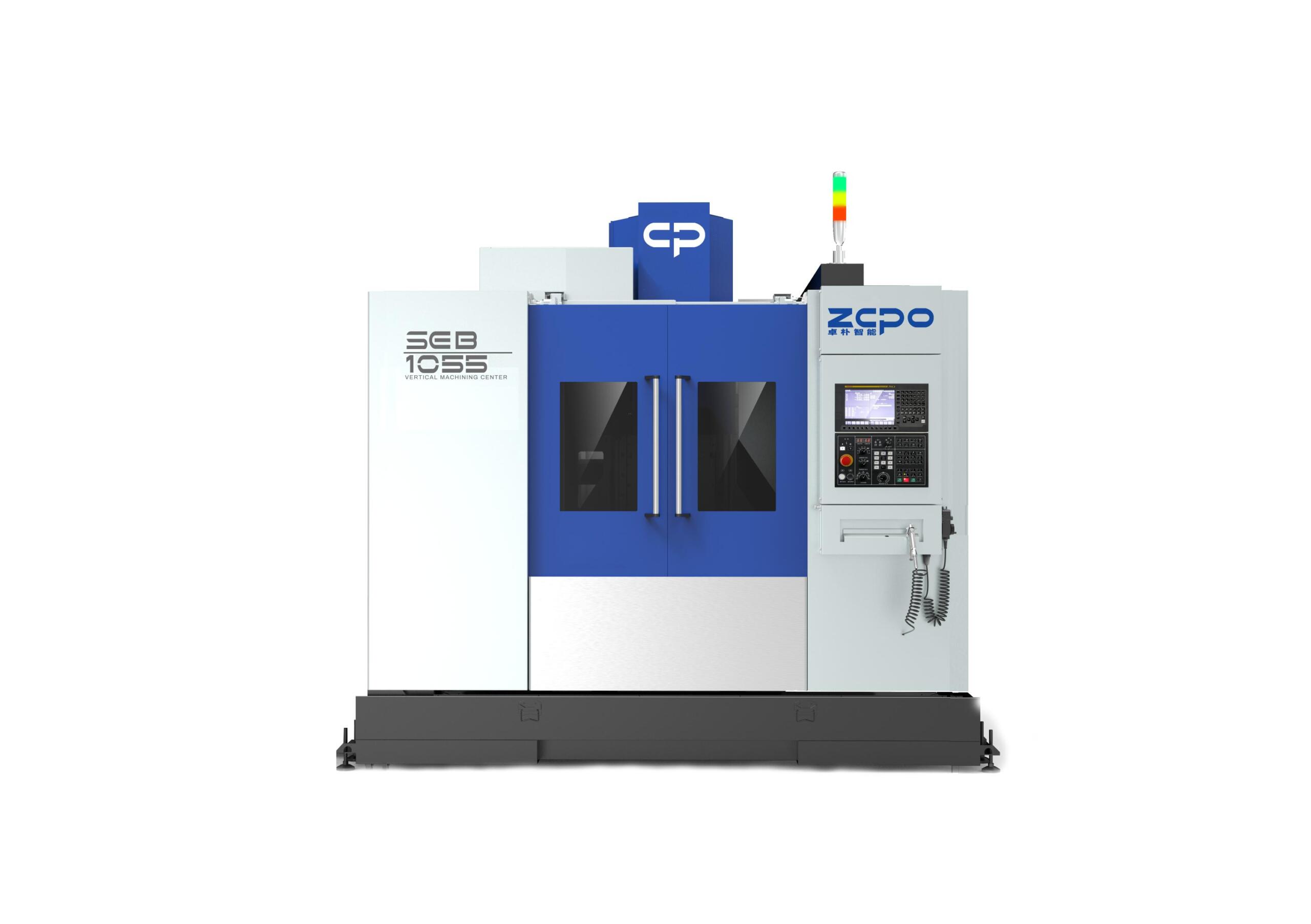

Zopo SEB1055
The ZOPO SEB1055 Vertical Machining Centre delivers high-speed precision machining with a rigid FEA-optimised structure, BT40 spindle, and advanced CNC control for mould, aerospace, and aluminium machining applications.
Description
The ZOPO SEB1055 Vertical Machining Centre is a high-performance CNC machining solution engineered for precision manufacturing, mould production, aerospace components, and high-speed aluminium machining. Part of the advanced ZOPO SE Series, the SEB1055 combines a rigid machine structure, high-speed spindle technology, and precision linear guideways to deliver outstanding machining accuracy and productivity.
Built on a robust cast iron frame developed using Finite Element Analysis (FEA), the SEB1055 provides exceptional rigidity, thermal stability, and vibration resistance during extended machining cycles. Its optimised structural design ensures consistent accuracy and surface finish quality, even when operating at high spindle speeds and feed rates.
The machine features a BT40 spindle capable of speeds up to 12,000 rpm, making it particularly well suited to high-speed machining of aluminium, non-ferrous materials, mould components, and precision engineering parts. Combined with advanced CNC control systems such as the Mitsubishi M80A, the SEB1055 offers excellent responsiveness, reliability, and machining performance across a wide range of applications.
Features
- High-performance vertical machining centre design
- Large 1000 × 550 × 600 mm machining envelope
- High-speed BT40 spindle up to 12,000 rpm
- Belt-driven spindle configuration (SEB)
- FEA-optimised cast iron machine structure
- High-precision linear guideway system
- Excellent rigidity and thermal stability
- Suitable for aluminium and non-ferrous material machining
- Mitsubishi M80A CNC control compatibility
- Ideal for mould and die applications
- High-speed, high-accuracy machining performance
- Available for 3-axis and 4-axis configurations
SPECIFICATIONS
| Specification | SEB1055 |
|---|---|
| Machine Type | Vertical Machining Centre |
| Series | ZOPO SE Series |
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 550 mm |
| Z-Axis Travel | 600 mm |
| Worktable Size | 500 × 1100 mm |
| Maximum Table Load | 600 kg |
| Spindle Type | Belt-Driven |
| Spindle Taper | BT40 |
| Maximum Spindle Speed | 12,000 rpm |
| Machine Structure | FEA-Optimised Cast Iron Frame |
| Guideway Type | Precision Linear Guideways |
| CNC Control | Mitsubishi M80A (Typical Configuration) |
| Axis Configuration | 3-Axis / Optional 4-Axis |
| Thermal Stability | High |
| Machining Accuracy | High Precision |
| Application Focus | Aluminium, Moulds, Aerospace Components |
| Material Compatibility | Non-Ferrous Metals, Aluminium, Precision Components |
