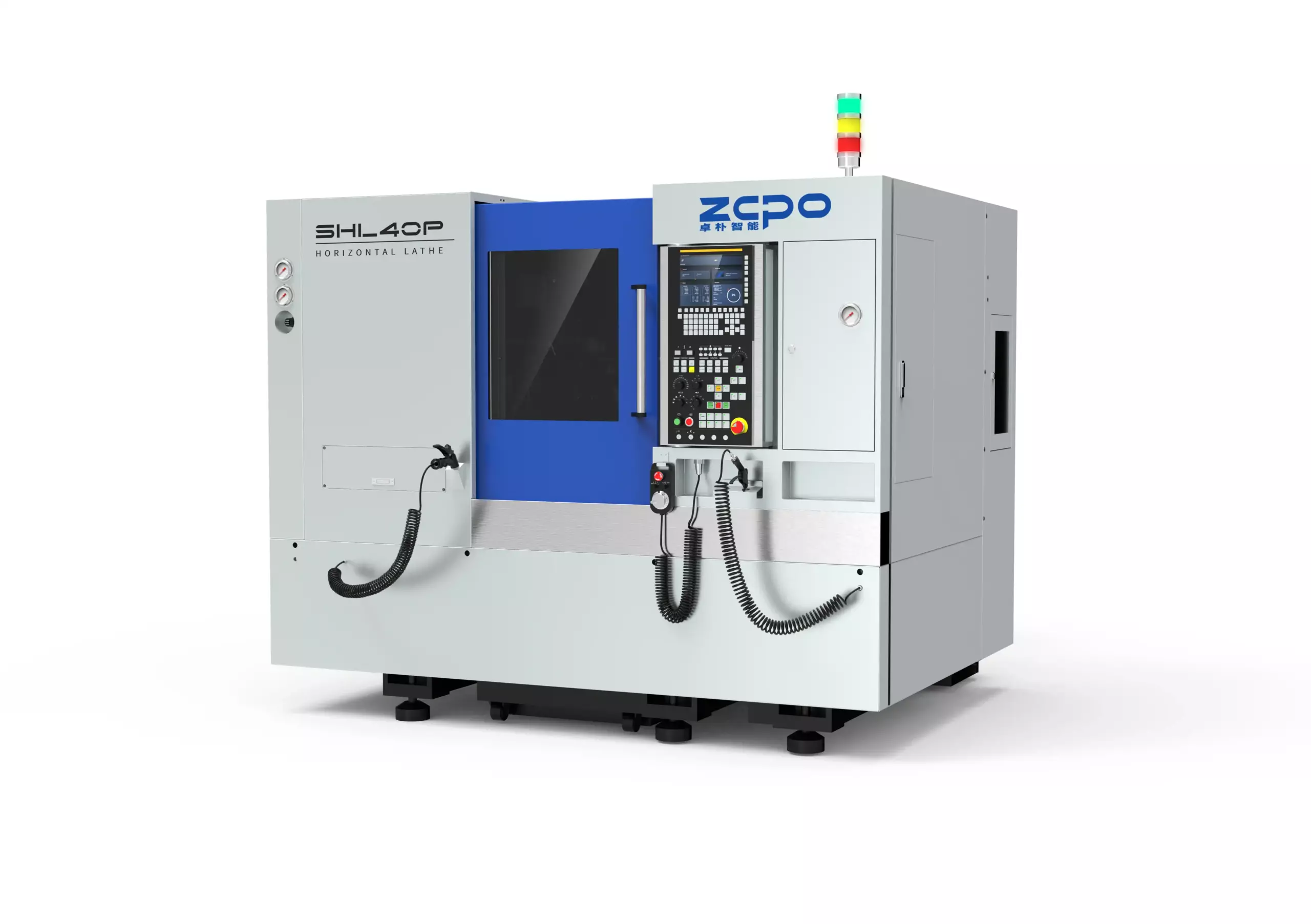

Zopo SHL40P
The ZOPO SHL40P CNC Turning Centre combines compact design, high-speed machining performance, and automation-ready flexibility for precision turning and multi-process machining applications.
Description
The ZOPO SHL40P CNC Turning Centre is a compact, high-performance turning solution designed for precision machining, batch production, and automated manufacturing environments. Combining a small footprint with excellent rigidity and machining capability, the SHL40P is ideally suited to workshops and manufacturers looking to maximise productivity without sacrificing valuable floor space.
Engineered to perform both roughing and finishing operations efficiently, the SHL40P supports a wide range of machining processes including turning, drilling, boring, and tapping. Its robust machine structure minimises vibration during cutting, ensuring consistent accuracy, improved surface finishes, and extended tool life across a variety of workpiece materials.
The machine features a high-speed spindle, rapid axis movements, and an efficient turret system that enables fast tool changes and reduced cycle times. Designed for easy integration into automated production environments, the SHL40P offers manufacturers a versatile and cost-effective solution for high-precision turning applications.
Features
- Compact footprint with high-rigidity construction
- Suitable for roughing and finishing operations
- Supports turning, drilling, boring, and tapping
- High-speed spindle with wide speed range
- Fast rapid traverse rates for improved productivity
- Efficient turret system for quick tool changes
- Reduced vibration for improved machining accuracy
- Automation-ready design
- Suitable for production and subcontract machining
- Low operating and installation costs
- Excellent surface finish performance
- Ideal for precision component manufacturing
SPECIFICATIONS
| Specification | SHL40P / SHL40PC |
|---|---|
| Machine Type | CNC Turning Centre |
| Maximum Swing Over Bed | Ø400 mm |
| Maximum Turning Diameter | Ø320 mm |
| Maximum Swing Over Carriage | Ø160 mm |
| Maximum Turning Length | 300 mm |
| X-Axis Travel | 460 mm |
| Z-Axis Travel | 365 mm |
| Spindle Nose | A2-5 |
| Maximum Bar Capacity | Ø42 mm |
| Spindle Speed Range | 50 – 5000 rpm |
| Spindle Motor Power | 7.5 / 11 kW |
| Rapid Traverse (X Axis) | 20 m/min |
| Rapid Traverse (Z Axis) | 24 m/min |
| Machine Configuration | Compact Horizontal CNC Lathe |
| Automation Compatibility | Yes |
| Machining Operations | Turning, Drilling, Boring, Tapping |
| Production Type | Batch & Automated Manufacturing |
