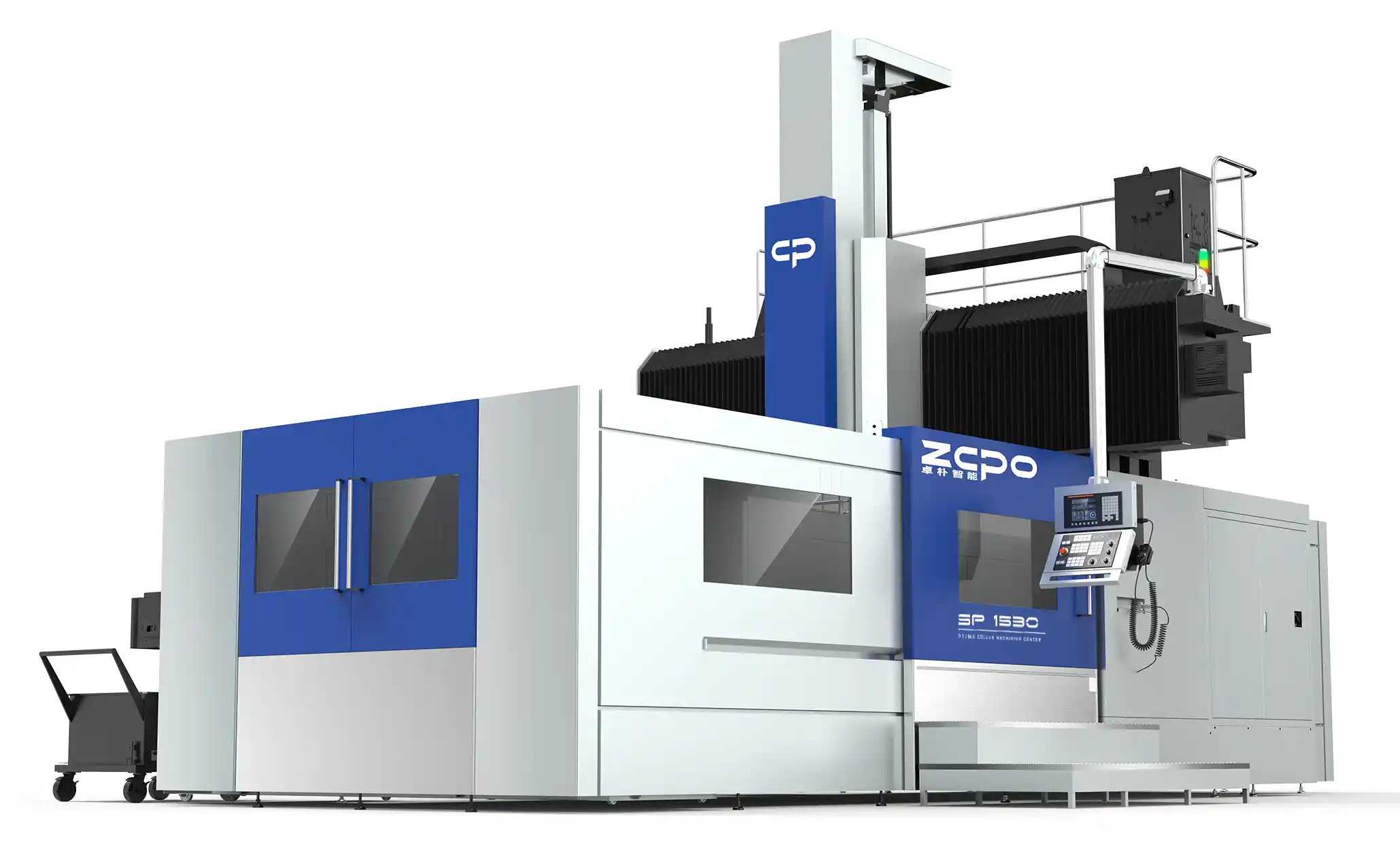

Zopo SP1530
Zopo SP1530 features ZOPO SP-series double-column gantry machining centre in the 1530 size class, with heavy column-and-beam construction and configurable spindle package, intended for robust CNC machining and efficient industrial production.
Description
Zopo SP1530 is a CNC machine built around ZOPO SP-series double-column gantry machining centre in the 1530 size class, with heavy column-and-beam construction and configurable spindle package. It is intended for mould, automotive, aerospace or general engineering applications, combining a rigid structure with production-focused controls and tooling to support accurate, repeatable work.
The machine is suitable for workshops and manufacturers that need reliable output across batch or production environments.
Features
- Heavy-duty double column machining centre design
- High-strength grey cast iron construction
- Heat-treated machine castings for long-term stability
- Exceptional vibration absorption and bending resistance
- Large work envelope for oversized components
- Intelligent thermal compensation system
- Collision buffer protection for spindle safety
- BT50 belt-driven spindle configuration
- High load-capacity worktable
- Suitable for mould, aerospace, rail, and heavy engineering applications
- Operator-friendly design with rotating control panel
- Large viewing windows for improved process monitoring
- Safety guarding for enhanced operator protection
- Designed for continuous heavy-duty production
SPECIFICATIONS
| Specification | SP1530 |
|---|---|
| Machine Type | Double Column Machining Centre |
| X-Axis Travel | 3100 mm |
| Y-Axis Travel | 1650 mm |
| Z-Axis Travel | 800 mm |
| Distance Between Columns | 1650 mm |
| Distance from Table to Spindle Nose | 160 – 960 mm |
| Worktable Size | 1500 × 3000 mm |
| Maximum Table Load | 7000 kg |
| Spindle Taper | BT50 |
| Spindle Type | Belt-Driven |
| Spindle Motor Power | 15 / 18.5 kW |
| Maximum Spindle Speed | 6000 rpm |
| Rapid Traverse (X Axis) | 10 m/min |
| Rapid Traverse (Y Axis) | 10 m/min |
| Rapid Traverse (Z Axis) | 10 m/min |
| Thermal Compensation | Standard |
| Collision Protection | Standard |
| Machine Construction | High-Strength Grey Cast Iron |
| Production Capability | Heavy-Duty Continuous Machining |
| Typical Industries | Aerospace, Rail, Mould & Die, Heavy Engineering |
