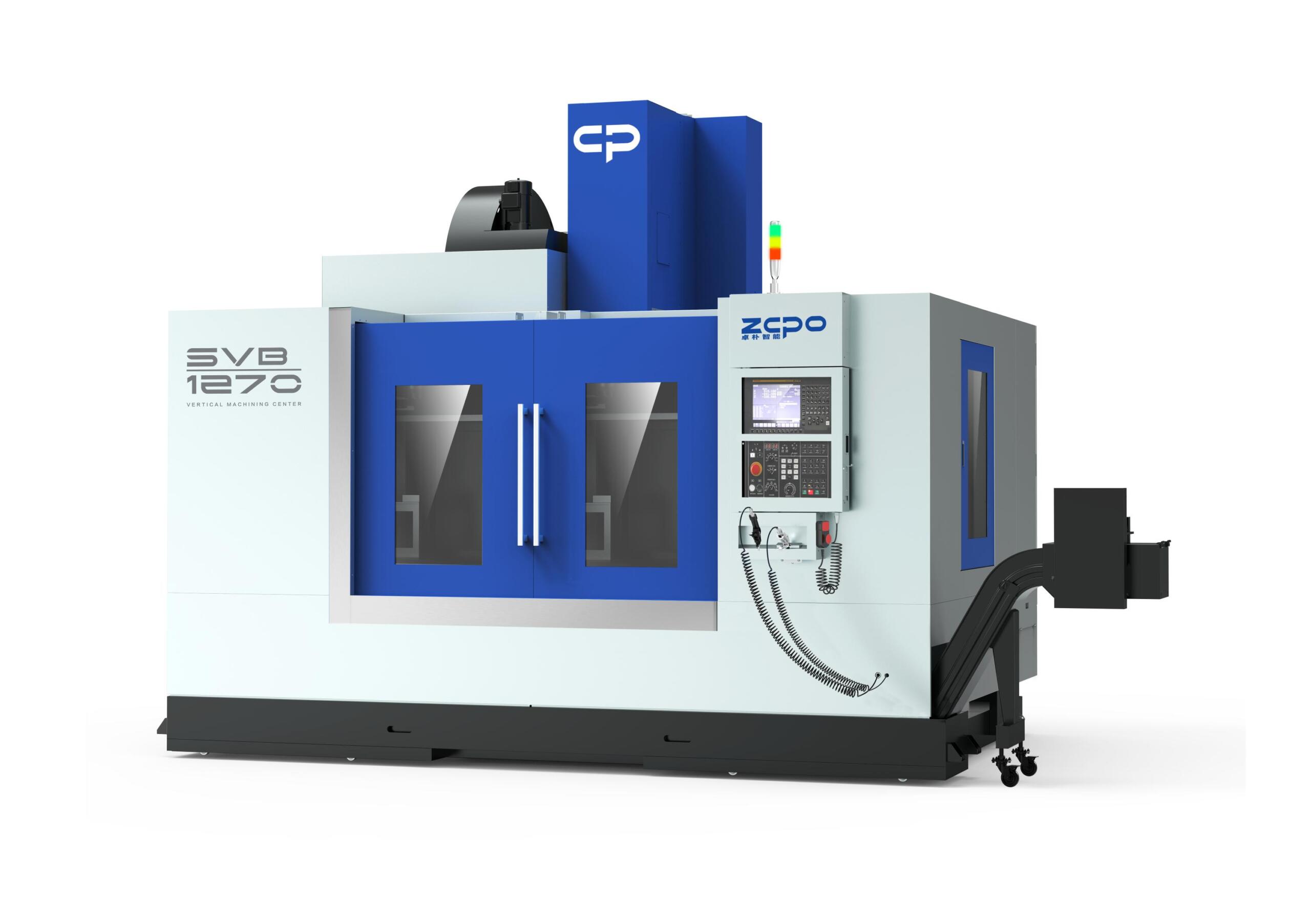

Zopo SVB1270
The ZOPO SVB1270 Vertical Machining Centre combines a rigid BT50 platform, large machining capacity, and high-performance tooling system for precision machining of heavy industrial components.
Description
The ZOPO SVB1270 Vertical Machining Centre is a heavy-duty CNC machining solution from the SV Excellent Models Series, designed for high-precision metal cutting, toolmaking, mould manufacturing, and aerospace applications. Combining a rigid machine structure with a powerful BT50 spindle and large machining envelope, the SVB1270 delivers outstanding performance in demanding production environments.
Built to handle large and heavy workpieces, the machine features a generous 1,000 kg table load capacity and a robust belt-driven spindle capable of high-torque cutting operations. Its rigid construction ensures excellent stability, vibration resistance, and long-term machining accuracy, making it ideal for both roughing and finishing applications.
With rapid axis movements, a fast automatic tool changer, and high-capacity tooling system, the SVB1270 maximises productivity while maintaining exceptional precision and reliability across a wide range of machining tasks.
Features
- Heavy-duty vertical machining centre design
- Large 1200 × 700 × 700 mm machining envelope
- High-rigidity machine construction
- BT50 belt-driven spindle system
- Suitable for heavy-duty metal cutting applications
- Large 1000 kg table load capacity
- 24-tool automatic tool changer
- Fast 3.5-second tool change time
- High rapid traverse rates for improved productivity
- Excellent stability and vibration resistance
- Suitable for mould, aerospace, and engineering applications
- Designed for precision roughing and finishing operations
- Large worktable for oversized components
- Reliable performance in continuous production environments
SPECIFICATIONS
| Specification | SVB1270 |
|---|---|
| Machine Type | Vertical Machining Centre |
| Series | SV Excellent Models Series |
| X-Axis Travel | 1200 mm |
| Y-Axis Travel | 700 mm |
| Z-Axis Travel | 700 mm |
| Worktable Size | 1400 × 700 mm |
| Maximum Table Load | 1000 kg |
| T-Slots | 5 × 18 × 125 mm |
| Spindle Taper | BT50 |
| Spindle Type | Belt-Driven |
| Maximum Spindle Speed | 6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Distance from Spindle Centre to Column | 766 mm |
| Distance from Spindle Nose to Table | 150 – 850 mm |
| Tool Magazine Capacity | 24 Tools |
| Tool Change Time | 3.5 Seconds |
| Rapid Traverse (X Axis) | 24 m/min |
| Rapid Traverse (Y Axis) | 24 m/min |
| Rapid Traverse (Z Axis) | 20 m/min |
| Maximum Cutting Feed Rate | 12,000 mm/min |
| Machine Dimensions (L × W × H) | 4350 × 2955 × 3320 mm |
| Machine Weight | 9700 kg |
