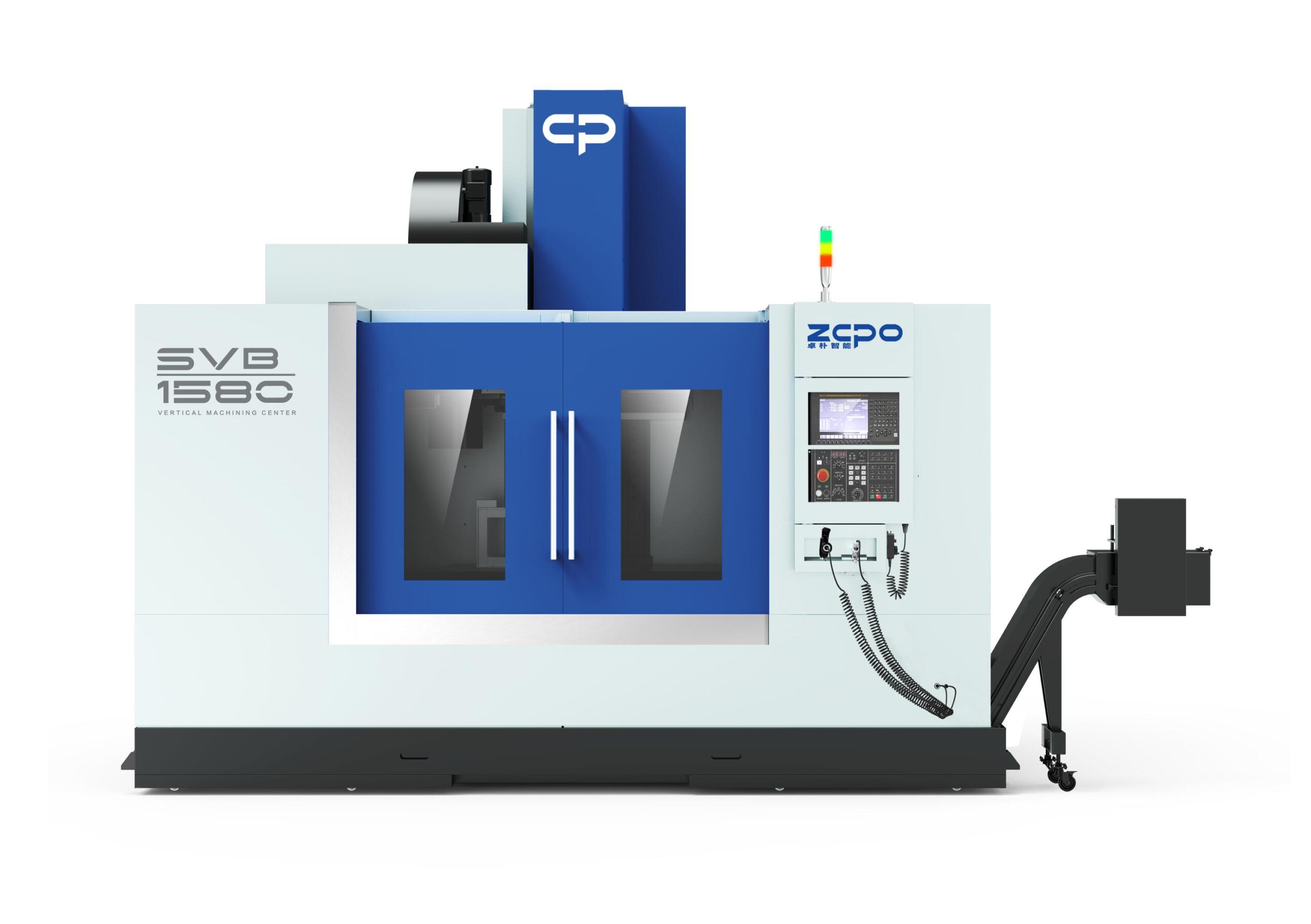

Zopo SVB1580
The ZOPO SVB1580 Vertical Machining Centre combines a rigid box-type structure, BT50 spindle, and large-capacity worktable for precision machining of heavy industrial components.
Description
The ZOPO SVB1580 Vertical Machining Centre is a heavy-duty CNC machining solution engineered for high-performance milling, precision manufacturing, and large workpiece processing. Featuring a rigid integral box-type bed, BT50 spindle platform, and fully enclosed machining area, the SVB1580 delivers exceptional stability, cutting performance, and reliability in demanding production environments.
Designed for industries such as mould and die manufacturing, automotive production, aerospace engineering, and heavy machinery manufacturing, the machine combines a large machining envelope with a powerful spindle system and high-capacity worktable. Its robust construction minimises vibration and maintains machining accuracy during heavy cutting operations, ensuring excellent surface finishes and dimensional consistency.
With rapid axis movements, a 24-tool automatic tool changer, and a 1,200 kg table capacity, the SVB1580 offers the productivity and versatility required for both heavy roughing and precision finishing applications.
Features
- Heavy-duty vertical machining centre design
- Integral box-type bed construction
- Fully enclosed machining chamber
- High-rigidity machine structure
- BT50 spindle taper for heavy-duty cutting
- Belt-driven spindle configuration
- Large-capacity worktable
- 24-tool automatic tool changer
- Excellent vibration resistance and stability
- Suitable for mould, automotive, and aerospace applications
- High rapid traverse rates for increased productivity
- Designed for continuous industrial production
- Ideal for both roughing and finishing operations
- High load capacity for large workpieces
SPECIFICATIONS
| Specification | SVB1580 |
|---|---|
| Machine Type | Vertical Machining Centre |
| X-Axis Travel | 1500 mm |
| Y-Axis Travel | 800 mm |
| Z-Axis Travel | 800 mm |
| Worktable Size | 1700 × 800 mm |
| Maximum Table Load | 1200 kg |
| Spindle Type | Belt-Driven |
| Spindle Taper | BT50 |
| Maximum Spindle Speed | 6000 rpm |
| Spindle Motor Power | 15 / 18.5 kW |
| Rapid Traverse (X Axis) | 24 m/min |
| Rapid Traverse (Y Axis) | 24 m/min |
| Rapid Traverse (Z Axis) | 24 m/min |
| Tool Magazine Capacity | 24 Tools |
| Machine Weight | 14,500 kg |
| Machine Structure | Integral Box-Type Bed |
| Enclosure Type | Fully Enclosed Tool Chamber |
| Application Type | Heavy-Duty Precision Machining |
