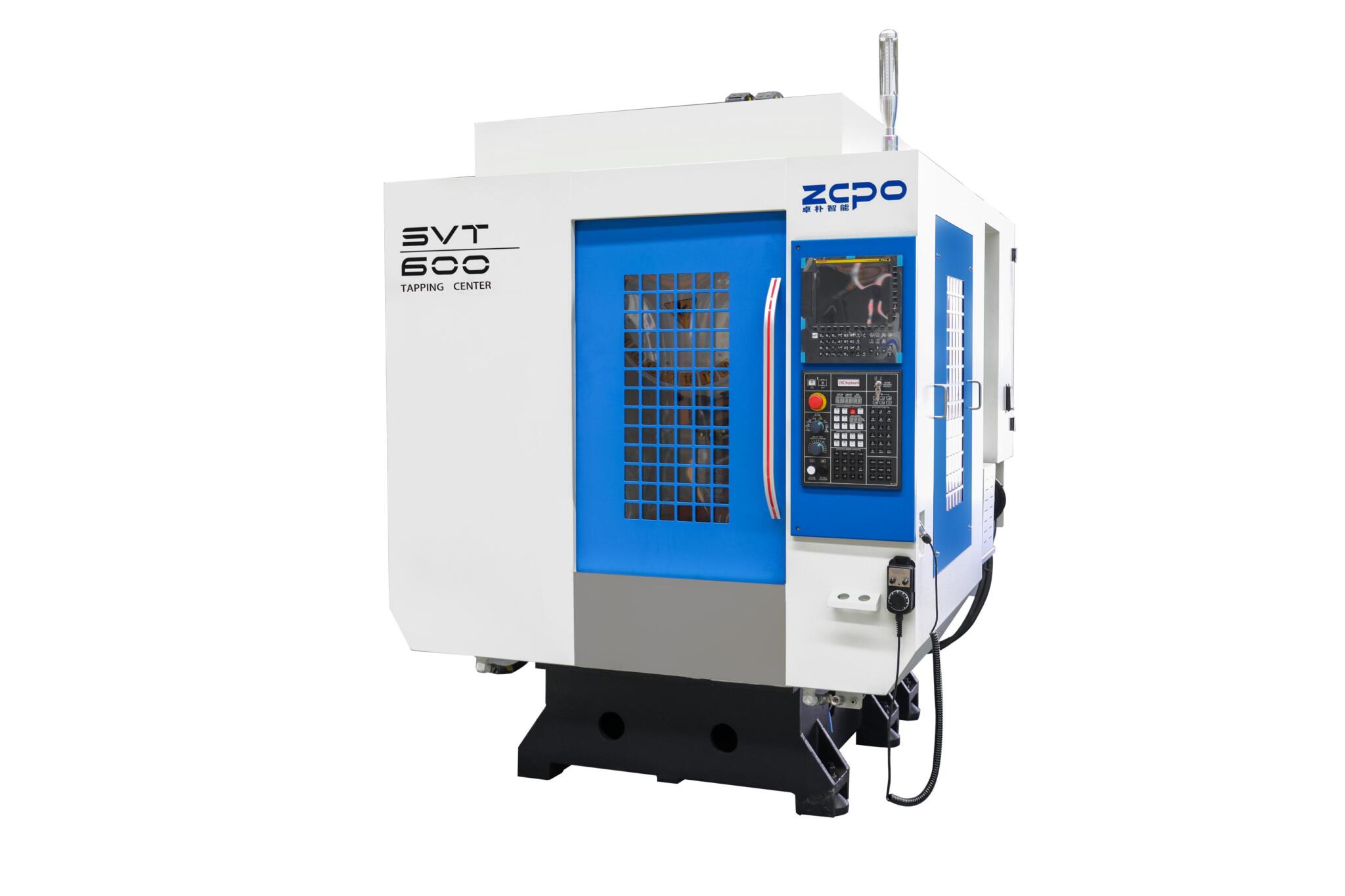

Zopo SVT600
The ZOPO SVT600 Vertical Tapping Centre delivers high-speed drilling, tapping, and milling performance with a 20,000 rpm spindle and rapid axis movements for maximum productivity.
Description
The ZOPO SVT600 Vertical Tapping Centre is a high-speed CNC machining solution designed for rapid drilling, tapping, and light milling applications. Engineered for industries such as automotive manufacturing, electronics, precision engineering, and mould production, the SVT600 combines exceptional speed, accuracy, and productivity in a compact footprint.
Built around a rigid herringbone cast-iron column structure, the machine delivers excellent stability and vibration resistance even during high-speed machining operations. Its direct-drive spindle system, high rapid traverse rates, and fast automatic tool changer significantly reduce cycle times, making it ideal for high-volume production environments.
The SVT600 is optimised for high-efficiency machining, offering outstanding dynamic response through direct-coupled ball screws and advanced CNC control systems. This combination allows manufacturers to achieve faster production rates while maintaining exceptional machining accuracy and surface finish quality.
Features
- High-speed vertical tapping centre design
- Suitable for drilling, tapping, and light milling operations
- Rigid herringbone cast-iron column construction
- High-speed spindle up to 20,000 rpm
- Direct-drive spindle technology
- Direct-coupled ball screw system
- Excellent dynamic response and positioning accuracy
- High rapid traverse rates on all axes
- 20-station automatic tool changer
- Compact footprint with high productivity
- Optimised for high-volume manufacturing
- Excellent vibration resistance and stability
- Compatible with Mitsubishi M80 CNC control systems
- Designed for automotive, electronics, and mould industries
SPECIFICATIONS
| Specification | SVT600 |
|---|---|
| Machine Type | Vertical Tapping Centre |
| X-Axis Travel | 600 mm |
| Y-Axis Travel | 400 mm |
| Z-Axis Travel | 330 mm |
| Worktable Size | 700 × 420 mm |
| Spindle Taper | BBT30 / BT30 |
| Maximum Spindle Speed | 20,000 rpm |
| Rapid Traverse (X Axis) | 48 m/min |
| Rapid Traverse (Y Axis) | 48 m/min |
| Rapid Traverse (Z Axis) | 48 m/min |
| Tool Magazine Capacity | 20 Tools |
| Tool Changer Type | Automatic Tool Changer (ATC) |
| Spindle Drive | Direct Drive |
| Ball Screw System | Direct-Coupled |
| Machine Structure | Herringbone Cast-Iron Column |
| CNC Control Compatibility | Mitsubishi M80 Series |
| Application Type | High-Speed Drilling, Tapping & Milling |
