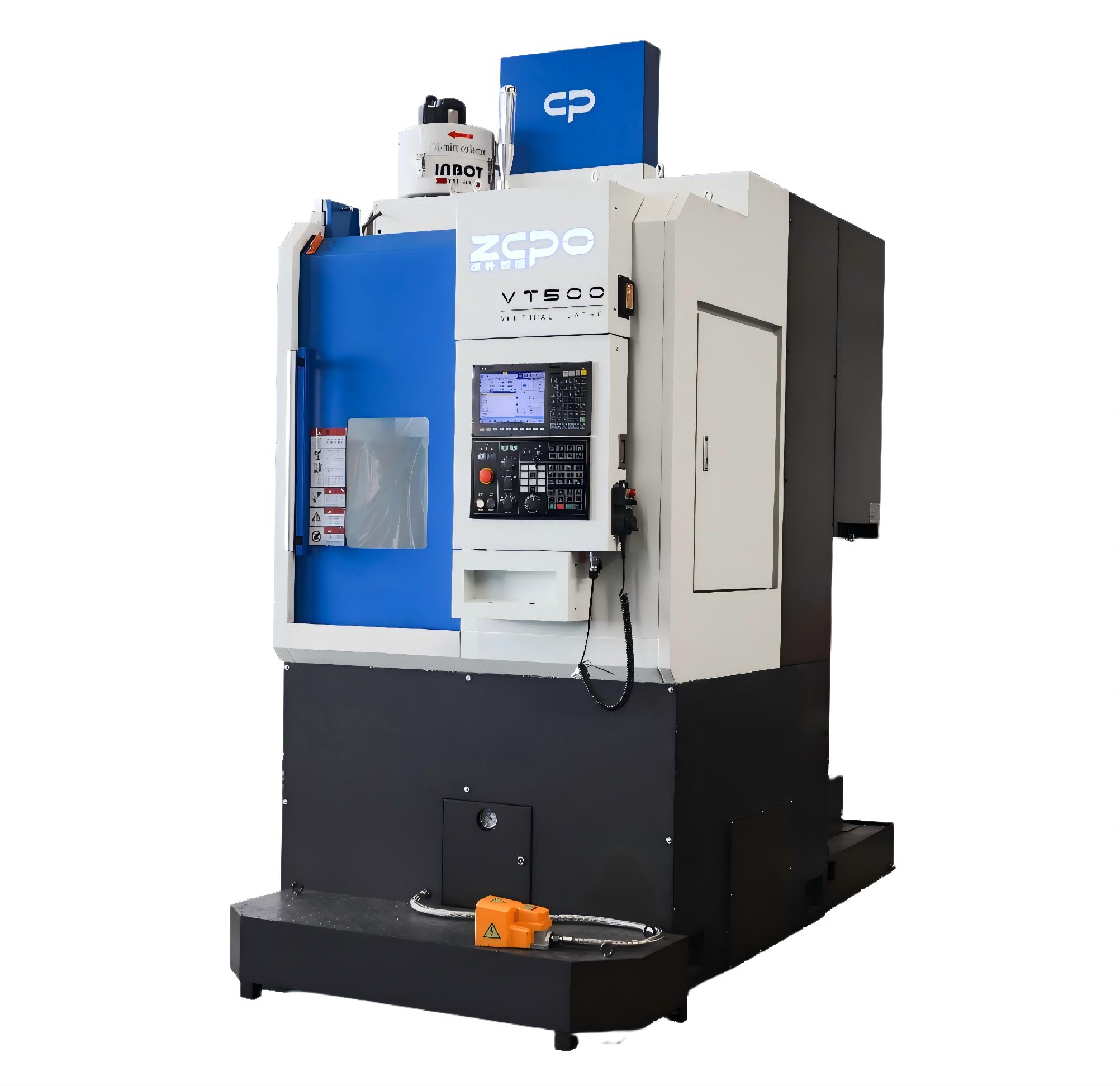

Zopo VT500
The ZOPO VT500 CNC Vertical Turning Lathe combines high rigidity, powerful turning performance, and automation-ready capabilities for precision machining of complex rotational components.
Description
The ZOPO VT500 CNC Vertical Turning Lathe is a compact yet heavy-duty machining solution designed for the precision turning of rings, discs, housings, flanges, and other rotational components. Featuring a highly rigid vertical structure and wide-span hard guideways, the VT500 delivers excellent machining stability, accuracy, and productivity in demanding industrial environments.
Its robust construction combines precision-scraped guideways, high-quality spindle bearings, and a powerful spindle drive system to provide outstanding vibration resistance and cutting performance. The machine is ideally suited for both roughing and finishing operations, maintaining consistent accuracy even during heavy cutting applications.
Designed for modern manufacturing, the VT500 can be integrated with advanced CNC controls, robotic loading systems, and optional live tooling to support automated production and multi-process machining requirements.
Features
- Heavy-duty CNC vertical turning lathe
- Wide-span hard guideway construction
- High-rigidity machine structure
- Excellent vibration resistance during heavy cutting
- Precision-scraped guideway surfaces
- High-performance spindle with imported bearings
- Suitable for rings, discs, housings, and flanges
- Servo-driven turret indexing system
- Hydraulic turret locking mechanism
- Fast rapid traverse rates on all axes
- Supports advanced CNC control systems
- Automation-ready for robotic loading integration
- Optional live tooling compatibility
- Suitable for both roughing and finishing operations
SPECIFICATIONS
| Specification | VT500 |
|---|---|
| Machine Type | CNC Vertical Turning Lathe |
| Maximum Swing Over Bed | Ø610 mm |
| Maximum Turning Diameter | Ø500 mm |
| Maximum Turning Length | 460 mm |
| Spindle Nose | A2-8 |
| Maximum Spindle Speed | 3000 rpm |
| X-Axis Travel | 270 mm |
| Z-Axis Travel | 485 mm |
| Rapid Traverse Speed | Up to 20 m/min |
| Turret Type | Servo-Driven Hydraulic Turret |
| Turret Locking System | Large-Diameter Toothed Disc Hydraulic Lock |
| Spindle Bearings | Imported Precision Bearings |
| Guideway Type | Wide-Span Hard Guideways |
| Machine Capability | Heavy-Duty Turning |
| Automation Compatibility | Robotic Loading Systems |
| Live Tooling Compatibility | Optional |
| CNC Control Compatibility | Fanuc, Siemens, HNC & Others |
